Located in the heart of Abuja, Maduka Metals has built a strong reputation as a trusted manufacturer and supplier of high-quality metal products. We take pride in our commitment to excellence, particularly in our range of copper round bars. Sourced and processed to meet the highest standards, our copper bars are a testament to our dedication to providing durable and reliable materials that power both local industry and innovative projects across Nigeria, ensuring our clients receive nothing but the best.

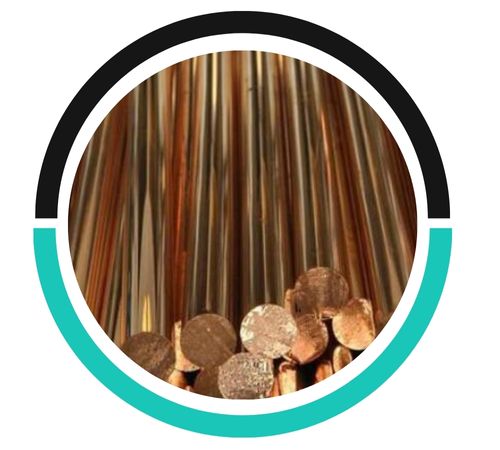

Our copper round bars are crafted from high-purity copper, known for its exceptional conductivity and natural resistance to corrosion. This material offers a unique combination of strength and malleability, making it surprisingly easy to machine and shape without sacrificing its inherent durability. Its excellent thermal and electrical properties are inherent, meaning they remain consistent, providing reliable performance in even the most demanding applications and environments where other materials might fail.
| Grade | Copper – UNS C12200 |
|---|---|
| Specification | ASTM B62 UNS C12200 |
| Standard | ASTM, ASME, API, GB, AISI, DIN, EN, SUS, UNS, ASTM B62 / ASME SB62 |

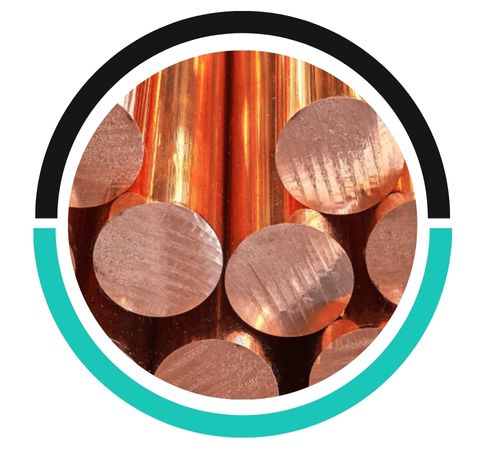

| Copper Round bar size | Diameter: 3mm~800mm |
| Copper Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |

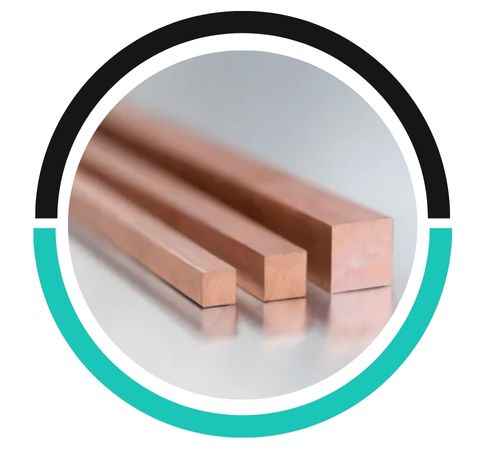

| Copper Square bar size | 4mm*4mm~100mm*100mm |

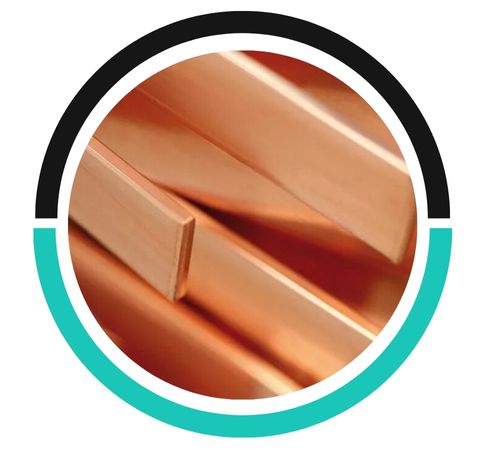

| Copper Flat bar size | Thickness: 2mm~100mm |
| Width: 10mm~500mm | |

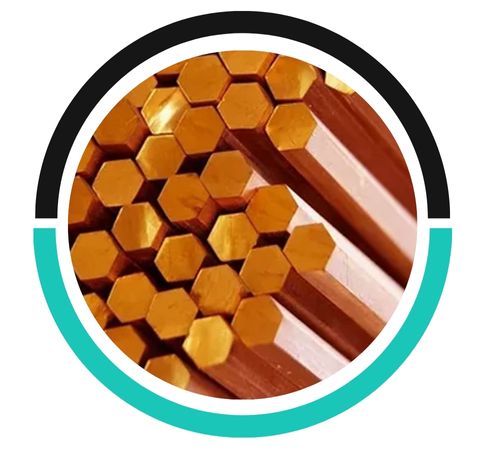

| Copper Hex Bar size | 2mm~100mm |
| Copper Billet Size | 1/2″ to 495mm Diameter |

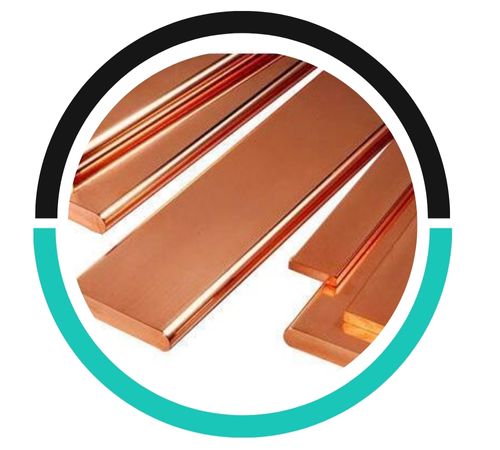

| Copper Rectangles Size | 33mm x 30mm to 295mm x 1066mm |
| LENGTHS | 12 RANDOM LENGTHS AND LONG BARS:15 20 RANDOM LENGTHS |
| Finish | Bright, Polish, Bright, Rough Turned, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Hot Rolled Pickled or Sand Blasting Finished, Cold Drawn, Bright, Polished, Hairline |
| Condition | Cold Drawnd Pulished Cold Drawn Centreless Ground & Polished, Annealed round bar |
| Technique | Copper Hot Rolled, Cold Rolled, Cold Drawn, Forged Round Bar, Rod |
| Form | Round, Rod, Precision Ground Bar, Square, Round Rod, Hollow, Hex (A/F), Triangle, Rectangle, Threaded, T-Bar, Half Round Bar, Flat Bar, Rings, Blocks, Billet, Ingot, I/H Bar, Angle, Channel Bar, Profiles, Forging Etc. |
| Our Copper round bar conforms to NACE MR0175/ISO 15156 | |
|
Standard |
Copper NO. |
Chemical Composition |
|
|
CU% |
P% |
||
|
ASTM
B280/62 |
C12200 |
>99.9 |
0.015 to 0.040 |
|
Mechanical Properties |
|||
|
Temper |
Tensile strength (Mpa) |
Elongation (%) |
Average Grain Size (mm) |
|
>60 |
>205 |
>40 |
>0.040 |
|
>50 |
>245 |
||
|
BS EN NUMBER |
TITLE |
NEAREST OLD BS EQUIVALENT |
|---|---|---|
|
Unwrought Products |
||
|
1976 |
Cast unwrought copper products |
6017 |
|
1977 |
Copper drawing stock (wire rod) |
6926 |
|
1978 |
Copper cathods |
6017 |
|
1981 |
Master Alloys |
– |
|
1982 |
Ingots and castings |
1400 |
|
Copper Rod / Bar, Wire, Profiles |
||
|
12163 |
Rod for general purposes |
2874 |
|
12164 |
Rod for free machining purposes |
2874 |
|
12165 |
Wrought and unwrought forging stock |
2872 |
|
12167 |
Profiles and rectangular bar for general purposes |
2874 |
|
12168 |
Hollow rod for free machining purposes |
– |
|
13347 |
Rod and wire for welding and braze welding |
1453, 1845, 2901 |
|
Copper Electrical Purposes |
||
|
13601 |
Copper rod, bar and wire general electrical purposes |
1433, 1432, 4109 |
|
13605 |
Copper profiles for electrical purposes |
|
Copper Ann- Round * CG – Centerless Ground | 3/16 CG Copper Bar 1/4 CG Copper Bar 5/16 CG Copper Bar 3/8 CG Copper Bar 1/2 CG Copper Bar 5/8 CG Copper Bar 3/4 CG Copper Bar 13/16 CG Copper Bar 7/8 CG Copper Bar 1 CG Copper Bar 1-1/8 CG Copper Bar 1-1/4 CG Copper Bar 1-3/8 CG Copper Bar 1-1/2 CG Copper Bar 1-3/4 CG Copper Bar | 2 CG Copper Bar 2-1/4 CG Copper Bar 2-1/2 CG Copper Bar 2-3/4 CG Copper Bar 3 CG Copper Bar 3-1/4 CG Copper Bar 3-1/2 CG Copper Bar 4 HR RT Copper Bar 4-1/2 HR RT Copper Bar 5 HR RT Copper Bar 6 HR RT Copper Bar 7 HR RT Copper Bar 8 HR RT Copper Bar 9 HR RT Copper Bar 10 HR RT Copper Bar |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|

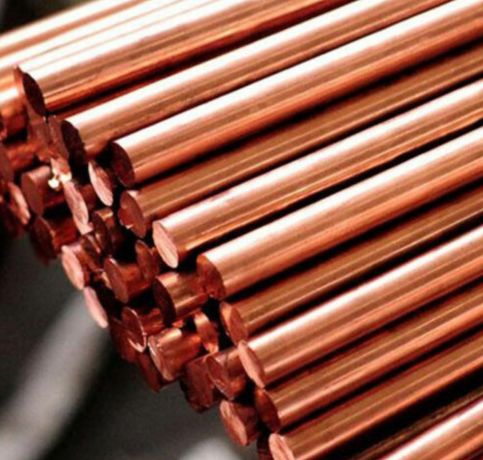

Cold Drawn and Polish | 3.00 – 75.00 | 1/8” – 3.00” | h8-h9-h10-h11, ASTM B62 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6” – 2.50” | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50” – 6.00” | h11, ASTMA-484 h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00” | h9-h10-h11, ASTM B62 |
|
Round Bar |
||||||||
|---|---|---|---|---|---|---|---|---|
|
Size |
Kgs / Foot |
Kgs / Mtr |
Size |
Kgs / Foot |
Kgs / Mtr |
Size |
Kgs / Foot |
Kgs / Mtr |
|
3mm |
0.017 |
0.055 |
20mm |
0.753 |
2.470 |
3″ |
10.900 |
35.762 |
|
1/8″ |
0.019 |
0.062 |
22mm |
0.908 |
2.979 |
3-1/4″ |
12.800 |
41.996 |
|
5/32″ |
0.029 |
0.095 |
7/8″ |
0.926 |
3.038 |
3-1/2″ |
14.850 |
48.772 |
|
4mm |
0.030 |
0.098 |
24mm |
1.080 |
3.543 |
3-3/4″ |
17.001 |
55.780 |
|
3/16″ |
0.043 |
0.141 |
25mm |
1.180 |
3.871 |
4″ |
19.306 |
63.340 |
|
5mm |
0.047 |
0.154 |
1″ |
1.210 |
3.970 |
4-1/4″ |
21.908 |
72.249 |
|
7/32″ |
0.058 |
0.190 |
26mm |
1.271 |
4.170 |
4-1/2″ |
24.4487 |
80.340 |
|
6mm |
0.068 |
0.223 |
27mm |
1.368 |
4.490 |
4-3/4″ |
27.366 |
90.249 |
|
1/4″ |
0.076 |
0.249 |
1-1/8″ |
1.534 |
5.033 |
5″ |
30.461 |
99.940 |
|
7mm |
0.091 |
0.298 |
30mm |
1.691 |
5.548 |
5-1/2″ |
36.690 |
121.000 |
|
5/16″ |
0.118 |
0.387 |
1-1/4″ |
1.924 |
6.349 |
6″ |
43.860 |
143.900 |
|
8mm |
0.120 |
0.398 |
32mm |
1.894 |
6.314 |
6-1/2″ |
51.093 |
167.630 |
|
9mm |
0.152 |
0.498 |
1-3/8″ |
2.303 |
7.550 |
7″ |
59.432 |
196.000 |
|
3/8″ |
0.170 |
0.557 |
35mm |
2.390 |
7.553 |
7-1/2″ |
68.226 |
225.000 |
|
10mm |
0.189 |
0.620 |
36mm |
2.438 |
7.999 |
8″ |
77.586 |
254.55 |
|
11mm |
0.228 |
0.748 |
38mm |
2.792 |
8.903 |
10″ |
121.048 |
397.140 |
|
7/16″ |
0.232 |
0.761 |
1-1/2″ |
2.715 |
8.951 |
|||
|
12mm |
0.271 |
0.889 |
40mm |
3.009 |
9.872 |
|||
|
1/2″ |
0.303 |
0.994 |
1-5/8″ |
3.200 |
10.449 |
|||
|
13mm |
0.318 |
1.043 |
1-3/4″ |
3.712 |
12.179 |
|||
|
14mm |
0.368 |
1.207 |
45mm |
3.807 |
12.555 |
|||
|
9/16″ |
0.383 |
1.256 |
1-7/8″ |
4.260 |
13.977 |
|||
|
15mm |
0.424 |
1.391 |
48mm |
4.330 |
14.205 |
|||
|
5/8″ |
0.473 |
1.551 |
50mm |
4.698 |
15.414 |
|||
|
16mm |
0.481 |
1.578 |
2″ |
4.848 |
15.906 |
|||
|
17mm |
0.543 |
1.791 |
2-1/8″ |
5.475 |
17.963 |
|||
|
11/16″ |
0.573 |
1.880 |
2-1/4″ |
6.135 |
20.128 |
|||
|
18mm |
0.610 |
2.001 |
60mm |
6.768 |
22.205 |
|||
|
3/4″ |
0.682 |
2.237 |
2-3/8″ |
6.838 |
22.435 |
|||
|
2-1/2″ |
7.576 |
24.856 |
||||||
|
2-5/8″ |
8.354 |
27.409 |
||||||
|
2-3/4″ |
9.169 |
30.083 |
||||||
Copper Round Bars typically do not require corrosion protection coatings due to their inherent corrosion resistance, but coatings may be used in specific environments for added protection.
Yes, Copper Round Bars can be welded using appropriate techniques, such as TIG or MIG welding, with careful control of heat to prevent oxidation.
To choose the right Copper Round Bar, consider factors such as required strength, conductivity, corrosion resistance, and the specific application needs.
The versatility of our copper round bar makes it a favorite across numerous fields. It is essential in electrical systems for bus bars and wiring components, and in plumbing for its resistance to bacteria and corrosion. Machinists value it for custom parts, while artisans use it for beautiful architectural details and sculptures. From robust industrial machinery to creative artistic endeavors, this material provides a dependable foundation, proving its worth in projects that demand both functionality and longevity.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
