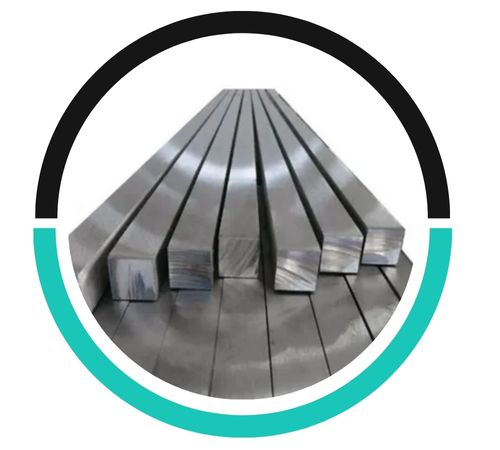

Maduka Metals, a reputable manufacturer and supplier located in Abuja, Nigeria, takes pride in providing top-notch Stainless Steel 410 Square Bars and Rods. These bars are crafted with precision to cater to the varied demands of the industrial and engineering sectors. Renowned for their remarkable strength, toughness, and resistance to corrosion, the Stainless Steel 410 Square Bars and Rods from Maduka Metals are built to thrive in tough environments. With a strong focus on quality and customer satisfaction, the company guarantees that each product meets international standards, delivering durable and dependable materials for construction, manufacturing, and mechanical applications across a range of industries.
Stainless Steel 410 Square Bars and Rods are martensitic stainless steels, primarily made up of 11.5–13.5% chromium, along with trace amounts of carbon, manganese, and silicon. This unique composition strikes a balance between hardness, strength, and moderate corrosion resistance. The material showcases tensile strength between 450 to 700 MPa and exhibits good ductility when properly heat-treated. It’s magnetic and can be easily hardened through heat treatment processes. Stainless Steel 410 offers an ideal mix of wear resistance and mechanical durability, making it perfect for structural and mechanical engineering applications.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A582, A276, A564, ASTM A484, 484M
Surface : hrap, hot rolled pickled or sand blasting finished, cold drawn, polished, hairline
Size : Tolerance: H8, H9, H10, H11, H12, H13K9, K10, K11, K12
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 410 | 0.15 | 11.5-13.5 | 1.00 | 0.75 | 0.040 | 0.030 | 1.00 |
| Tempering Temperature (°C) | Tensile Strength (MPa) | Yield Strength 0.2% Proof (MPa) | Elongation (% in 50 mm) | Hardness Brinell (HB) | Impact Charpy V (J) |
|---|---|---|---|---|---|
| Annealed * | 480 min | 275 min | 16 min | – | – |
| 204 | 1475 | 1005 | 11 | 400 | 30 |
| 316 | 1470 | 961 | 18 | 400 | 36 |
| 427 | 1340 | 920 | 18.5 | 405 | # |
| 538 | 985 | 730 | 16 | 321 | # |
| 593 | 870 | 675 | 20 | 255 | 39 |
| 650 | 300 | 270 | 29.5 | 225 | 80 |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 410 | 1.4006 | S41000 | SUS 410 | 410S21 | – | – | 56A |
| SQUARES | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.62 | 2.05 |
| 18 | 0.79 | 2.59 |
| 20 | 0.76 | 2.49 |
| 22 | 1.18 | 3.87 |
| 25 | 1.52 | 5.00 |
| 28 | 1.91 | 6.27 |
| 30 | 2.19 | 7.20 |
| 32 | 2.50 | 8.19 |
| 36 | 3.16 | 10.37 |
| 38 | 3.52 | 11.55 |
| 40 | 3.90 | 12.80 |
| 45 | 4.94 | 16.20 |
| 50 | 6.10 | 20.00 |
| 56 | 7.65 | 25.08 |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Yes, Stainless Steel 410 square bars can be welded, but preheating and post-weld heat treatment are often recommended to avoid cracking. Proper welding techniques ensure strong, durable joints.
To ensure the quality of Stainless Steel 410 square bars, source them from reputable suppliers and conduct material testing, such as tensile strength and hardness tests. Additionally, check for proper surface finish and dimensional accuracy.
Yes, we provide 410 Stainless Steel Square Bars and Rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
These Stainless Steel 410 Square Bars and Rods find extensive use in industries that require moderate corrosion resistance and high mechanical strength. They are commonly used in the production of pump shafts, valves, fasteners, and machine components. Additionally, they play a vital role in the automotive, petrochemical, and power generation sectors for parts that are exposed to mildly corrosive environments. Thanks to their hardness and wear resistance, these bars are also well-suited for cutlery, surgical instruments, and tooling applications. Their excellent machinability and smooth, polishable surface finish make them a popular choice for both industrial and decorative purposes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
