Welcome to Maduka Metals, your trusted partner for premium metal solutions right here in Abuja. We specialize in supplying high-performance materials like Incoloy 330 Bars and Rods, catering directly to the demanding needs of Nigeria’s growing industrial sector. Our commitment is to provide not just products, but reliable partnerships built on quality, local accessibility, and expert support to help your projects succeed with confidence and efficiency.
Incoloy 330 is expertly formulated with a high nickel-chromium content, along with additions of silicon, for exceptional performance. This composition gives the alloy outstanding strength and resistance to oxidation and carburization, even when exposed to extreme temperatures. The material maintains good mechanical properties, including high tensile strength and excellent creep resistance, making it a robust choice for challenging thermal environments.
| Grade | Incoloy 330 – UNS N08330 |
|---|---|
| Specification | ASTM B511 UNS N08330, AMS 5716, ASTM B511, ASME SB511 |

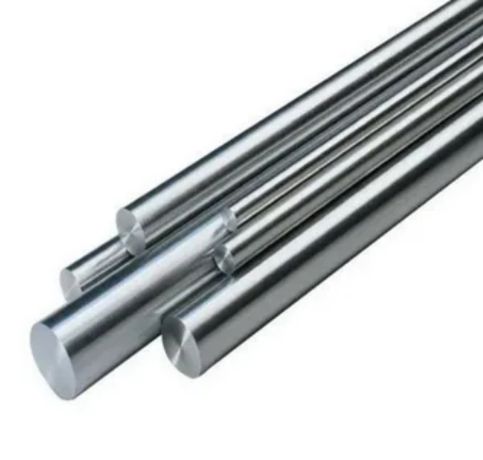

| Round bar size | Diameter: 3-~330mm |

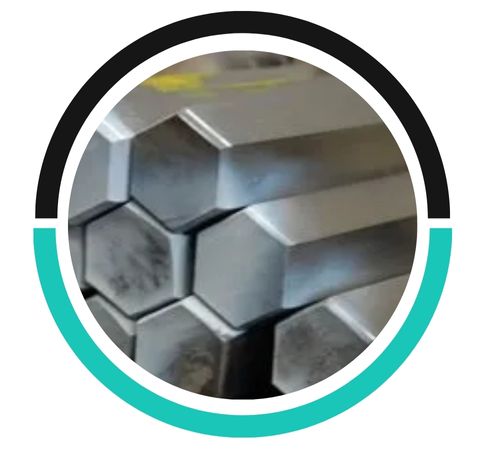

| Hex Bar size | 2-100mm A/F |

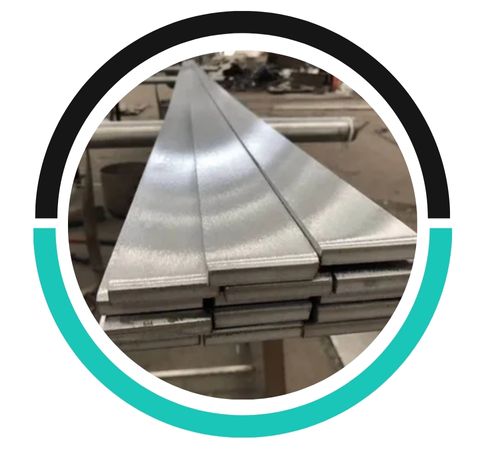

| Flat bar size | Thickness: 2 -100mm |
| Width: 10 to 500mm | |

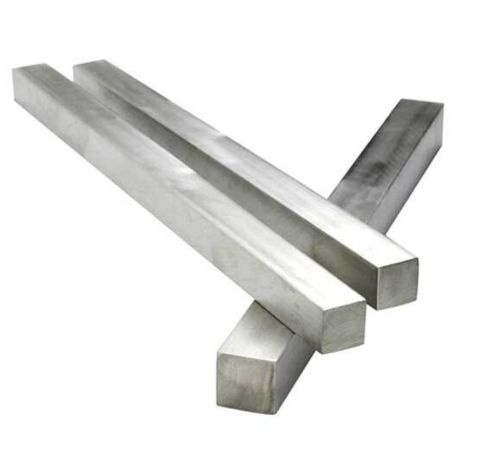

| Square bar size | 4 to 100mm |
| Angle bar size | 3mm*20mm*20mm~12mm*100mm*100mm |
| Section | 3.0 to 12.0mm thickness |
| Channel Bar | 80 x 40mm to 150 x 75mm section; 5.0 to 6.0mm thickness |
| Hollow Bar | 32mm OD x 16mm ID to 250mm OD x 200mm ID) |
| Billet Size | 1/2″ to 495mm Diameter |

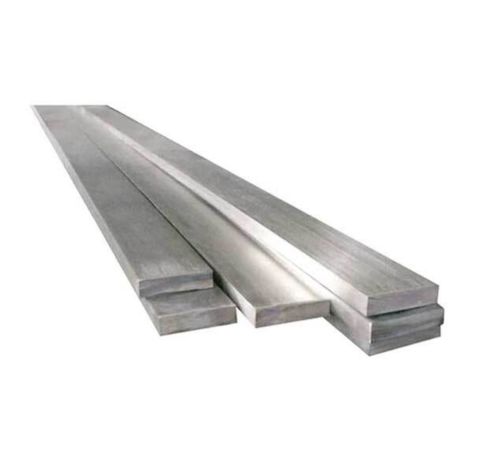

| Rectangles Size | 33 x 30mm to 295 x 1066mm |
| Round Bar Standard Dimensions | Diameter / Height: |

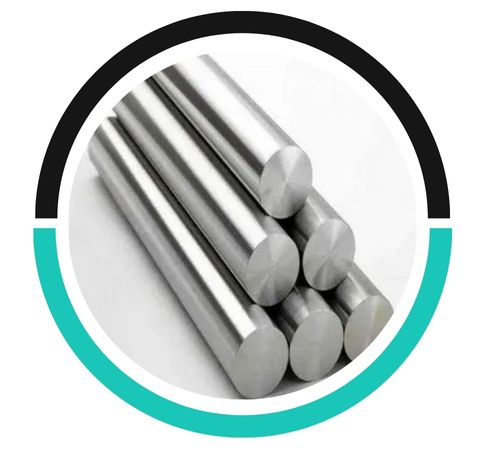

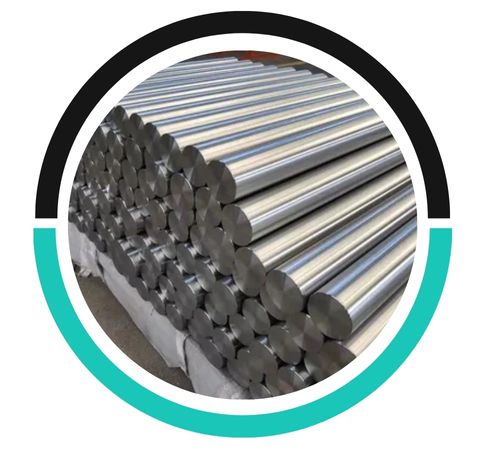

| Finish | Cold (bright) drawn, centreless ground, hot rolled, smooth turned, peeled, slit rolled edge, hot rolled annealed, Rough Turned, Bright, Polish, Grinding, Centreless Ground & Black |
| Tolerance | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Surface | Bright, Hot Rolled Pickled, Cold Drawn, Sand Blasting Finished, Polished, Hairline |
| Condition | Hardened & tempered, annealed |
| Technique | Incoloy 330 Hot Rolled, Cold Drawn, Cold Rolled, Forged Round Bar, Rod |
| Processing | Bar cutting to 650mm |

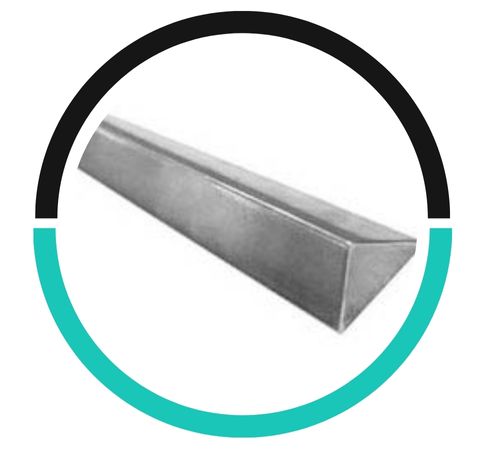

| Form | Incoloy 330 Rod,Channel Bar, Forging, Precision Ground Bar, Flat Bar, Round, Rod, T-Bar, Square, Blocks, Round Rod, Rings, Hollow, Threaded, Half Round Bar, Profiles, Triangle, Rectangle, Hex (A/F), Billet, Ingot, I/H Bar etc. |
| Our stockyad location for fast delivery across India | Shivamogga, Agra, Ahmedabad, Mumbai, Dhanbad, Thiruvananthapuram, Bengaluru, Tiruchirappalli, Pune, Noida, Tirunelveli, Bhubaneswar, Chennai, Coimbatore, Pimpri-Chinchwad, Hyderabad, Navi Mumbai |
| Our Incoloy 330 Round bar conforms to NACE MR0175/ISO 15156 | |
|
Element |
Average Nominal % |
|---|---|
|
Chromium |
18.00 – 22.00 |
|
Nickel |
34.00 37.00 |
|
Carbon |
0.08 Max |
|
Silicon |
1.00 – 1.50 |
|
Manganese |
2.00 Max |
|
Phosphorus |
0.03 Max |
|
Sulfur |
0.03 Max |
|
Copper |
1.00 Max |
|
Iron |
Balance |
|
Tensile Strength – ksi (min.) |
0.2% Offset Yield Strength – ksi (min.) |
Elongation in 2 inches – % (min.) |
Hardness – Rockwell B |
|---|---|---|---|
|
70 |
30 |
30 |
| STANDARD | WERKSTOFF NR. | UNS |
|---|---|---|
| Incoloy 330 | 1.4886 | N08330 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
Yes, Incoloy 330 bars and rods offer excellent corrosion resistance, especially in high-temperature environments. They are highly resistant to oxidation, carburization, and sulfidation.
Yes, Incoloy 330 bars and rods can be customized in various sizes and lengths to meet specific requirements. They are available in different diameters, lengths, and shapes as per client specifications.
Incoloy 800, 800H, and 800HT bars and rods perform exceptionally well in high-temperature environments, maintaining their strength and resistance to oxidation and carburization. They are ideal for applications in furnaces, heat exchangers, and gas turbines.
Incoloy 330 bars and rods are commonly used in high-temperature applications due to their excellent resistance to oxidation, carburization, and thermal fatigue. They are widely employed in industries such as heat exchangers, furnaces, kilns, and combustion chambers, where extreme temperatures are prevalent. Additionally, Incoloy 330 is used in petrochemical industries for applications involving corrosive environments and elevated temperatures. Its resistance to scaling and sulfurous atmospheres makes it ideal for manufacturing components like tubes, rods, and shafts. Other applications include gas turbine engines, burner components, and high-temperature chemical processing equipment, ensuring long-lasting performance in demanding environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
