Welcome to Maduka Metals, your trusted partner in Abuja for premium metal solutions. We take pride in being a leading manufacturer and supplier, specializing in high-performance materials designed to meet the toughest industrial challenges. Our focus is on providing exceptional quality and reliability, ensuring that your projects are built on a foundation of strength and durability. When you source your Inconel Flat Bar from us, you are choosing a local supplier committed to supporting Nigeria’s growing industries with top-tier products and dependable service.

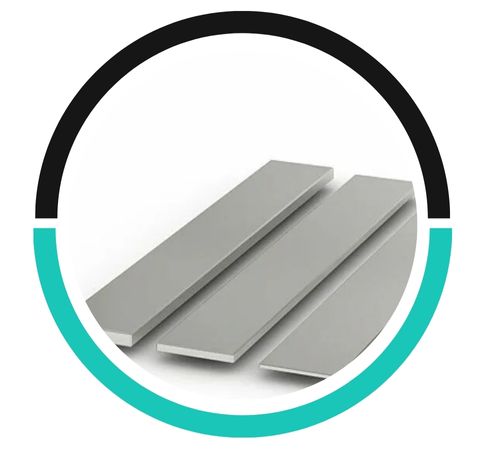

The Inconel Flat Bar we supply is engineered for extreme conditions, thanks to its unique composition primarily of nickel and chromium, enhanced with elements like molybdenum and niobium. This specific blend grants it outstanding mechanical properties, including remarkable tensile strength and exceptional resistance to creep and fatigue. It maintains its structural integrity even when exposed to intense heat and tremendous pressure, making it a material that doesn’t just perform but endures, ensuring long-term reliability in the most demanding applications.
| Size range | 12 mm – 46 mm (1/2 inch- 1 ¾ inch) |
| Flat Bar Size Range | Thickness: 2 -100mm / Width: 10 to 500mm |

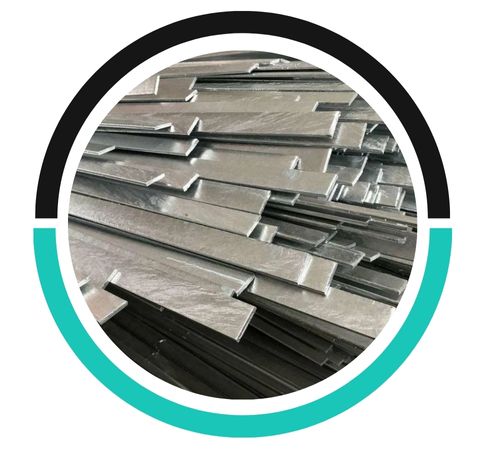

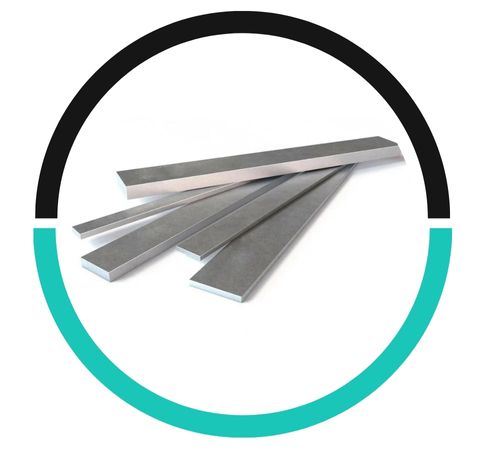

| Manufacturing Technique | Hot Rolled, Cold Drawn, Cold Rolled, Forged |
| Crack Test | Magnetic Particle Inspection (MPI) |
| Length | 2 meters to 7.5 meters ( 8 feet to 24 feet), or Custom Length as per Requirement |
| Size Tolerances | h10 and h11 |
| Chamfering | Available in 30°, 45° & 60° through fully automatic, both-end chamfering machine |

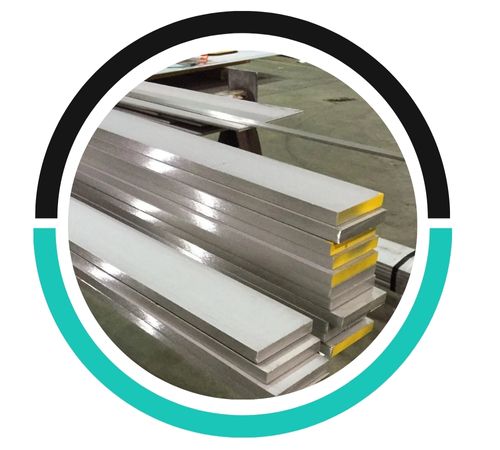

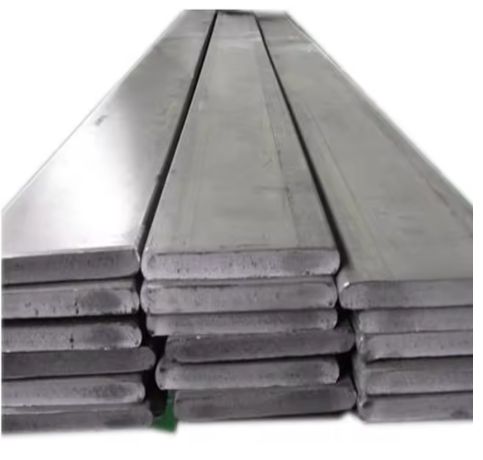

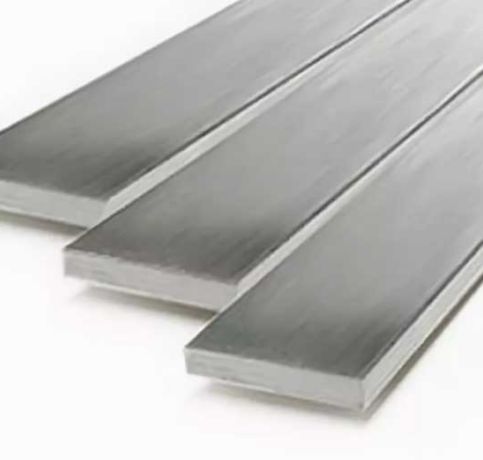

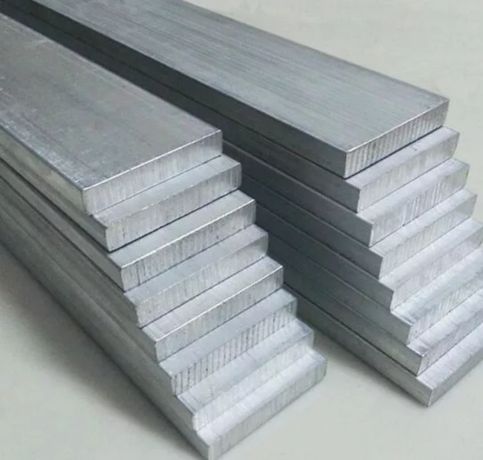

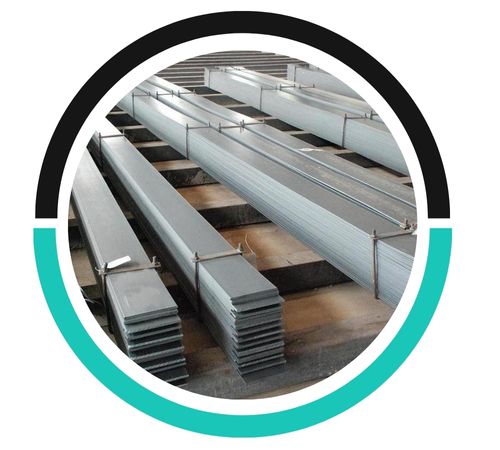

| Surface Finish | Cold (bright) drawn, hot rolled, centreless ground, peeled, Rough Turned, hot rolled annealed, smooth turned, Bright, slit rolled edge, Polish, Grinding, Centreless Ground & Black |

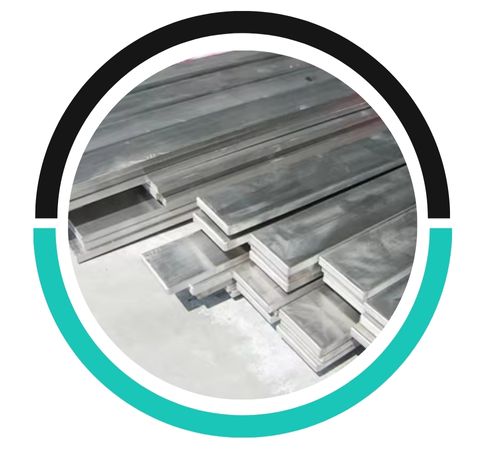

| Heat Treatment | Annealed, Solution Annealed |
| Tolerance | H8, H10, H9, H11, H12, K10, H13K9, K12 K11 or as per clients’ requirements |
| Ni | Cr | Fe | Mo | Nb+Ta | C | Mn | Si | Ph | S | Al | Ti | Co | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Min | Bal | 20 | – | 8 | 3.15 | – | – | – | – | – | – | – | – |
| Max | – | 23 | 5 | 10 | 4.15 | 0.10 | 0.50 | 0.50 | 0.015 | 0.015 | 0.40 | 0.40 | 1.0 |
| 0.2% Proof Stress | Tensile Strength | Elongation | Reduction of area | Hardness |
|---|---|---|---|---|
| MPA | MPA | % | % | HRB |
| Min | Min | Min | Min | Min |
| 414 | 827 | 30 | 40 | 145 |
| Flat Size | KG’s per Metre | Standard Length (m) |
|---|---|---|
| 10 x 3 | 0.24 | 6.0 |
| 13 x 3 | 0.31 | 6.0 |
| 13 x 5 | 0.46 | 6.0 |
| 16 x 3 | 0.38 | 6.0 |
| 16 x 5 | 0.64 | 6.0 |
| 16 x 8 | 1.03 | 6.0 |
| 20 x 3 | 0.48 | 6.0 |
| 20 x 5 | 0.81 | 6.0 |
| 20 x 6 | 0.97 | 6.0 |
| 20 x 10 | 1.61 | 6.0 |
| 25 x 3 | 0.60 | 6.0 |
| 25 x 5 | 1.01 | 6.0 |
| 25 x 6 | 1.21 | 6.0 |
| 25 x 8 | 1.61 | 6.0 |
| 25 x 10 | 2.01 | 6.0 |
| 25 x 12 | 2.41 | 6.0 |
| 32 x 3 | 0.77 | 6.0 |
| 32 x 5 | 1.29 | 6.0 |
| 32 x 6 | 1.55 | 6.0 |
| 32 x 8 | 2.06 | 6.0 |
| 32 x 10 | 2.58 | 6.0 |
| 32 x 12 | 3.09 | 6.0 |
| 40 x 3 | 0.97 | 6.0 |
| 40 x 5 | 1.61 | 6.0 |
| 40 x 6 | 1.93 | 6.0 |
| 40 x 8 | 2.58 | 6.0 |
| 40 x 10 | 3.22 | 6.0 |
| 40 x 12 | 3.86 | 6.0 |
| 40 x 16 | 5.15 | 6.0 |
| 40 x 20 | 6.14 | 6.0 |
| 50 x 3 | 1.21 | 6.0 |
| 50 x 5 | 2.01 | 6.0 |
| 50 x 6 | 2.41 | 6.0 |
| 50 x 8 | 3.22 | 6.0 |
| 50 x 10 | 4.02 | 6.0 |
| 50 x 12 | 4.83 | 6.0 |
| 50 x 16 | 6.44 | 6.0 |
| 50 x 20 | 8.05 | 6.0 |
| 50 x 25 | 10.1 | 6.0 |
| 65 x 3 | 1.57 | 6.0 |
| 65 x 5 | 2.62 | 6.0 |
| 65 x 6 | 3.14 | 6.0 |
| 65 x 8 | 4.18 | 6.0 |
| 65 x 10 | 5.23 | 6.0 |
| 65 x 12 | 6.28 | 6.0 |
| 65 x 16 | 8.37 | 6.0 |
| 65 x 20 | 10.5 | 6.0 |
| 65 x 25 | 13.1 | 6.0 |
| 75 x 5 | 3.02 | 6.0 |
| 75 x 6 | 3.62 | 6.0 |
| 75 x 8 | 4.83 | 6.0 |
| 75 x 10 | 6.04 | 6.0 |
| 75 x 12 | 7.24 | 6.0 |
| 75 x 16 | 9.66 | 6.0 |
| 75 x 20 | 12.1 | 6.0 |
| 75 x 25 | 15.1 | 6.0 |
| 75 x 40 | 24.1 | 6.0 |
| 90 x 5 | 3.62 | 6.0 |
| 90 x 6 | 4.35 | 6.0 |
| 90 x 8 | 5.79 | 6.0 |
| 90 x 10 | 7.24 | 6.0 |
| 90 x 12 | 8.69 | 6.0 |
| 100 x 5 | 4.02 | 6.0 |
| 100 x 6 | 4.83 | 6.0 |
| 100 x 8 | 6.44 | 6.0 |
| 100 x 10 | 8.05 | 6.0 |
| 100 x 12 | 9.66 | 6.0 |
| 100 x 16 | 12.9 | 6.0 |
| 100 x 20 | 16.1 | 6.0 |
| 100 x 25 | 20.1 | 6.0 |
| 100 x 50 | 40.2 | 6.0 |
| 110 x 6 | 5.31 | 6.0 |
| 110 x 8 | 7.08 | 6.0 |
| 110 x 10 | 8.85 | 6.0 |
| 110 x 12 | 10.6 | 6.0 |
| 130 x 5 | 5.23 | 6.0 |
| 130 x 6 | 6.28 | 6.0 |
| 130 x 8 | 8.37 | 6.0 |
| 130 x 10 | 10.5 | 6.0 |
| 130 x 12 | 12.6 | 6.0 |
| 130 x 16 | 16.7 | 6.0 |
| 130 x 20 | 20.9 | 6.0 |
| 130 x 25 | 26.2 | 6.0 |
| 150 x 5 | 6.04 | 6.0 |
| 150 x 6 | 7.24 | 6.0 |
| 150 x 8 | 9.66 | 6.0 |
| 150 x 10 | 12.1 | 6.0 |
| 150 x 12 | 14.5 | 6.0 |
| 150 x 16 | 19.3 | 6.0 |
| 150 x 20 | 24.1 | 6.0 |
| 150 x 25 | 30.1 | 6.0 |
| 150 x 50 | 60.4 | 6.0 |
| 180 x 5 | 7.24 | 6.0 |
| 180 x 6 | 8.69 | 6.0 |
| 180 x 10 | 14.5 | 6.0 |
| 180 x 12 | 17.4 | 6.0 |
| 180 x 16 | 23.2 | 6.0 |
| 180 x 20 | 29.0 | 6.0 |
| 180 x 25 | 36.2 | 6.0 |
| 200 x 6 | 9.66 | 6.0 |
| 200 x 8 | 12.9 | 6.0 |
| 200 x 10 | 16.1 | 6.0 |
| 200 x 12 | 19.3 | 6.0 |
| 200 x 16 | 25.7 | 6.0 |
| 200 x 20 | 32.2 | 6.0 |
| 200 x 25 | 40.3 | 6.0 |
| 250 x 6 | 12.1 | 6.0 |
| 250 x 8 | 16.1 | 6.0 |
| 250 x 10 | 20.1 | 6.0 |
| 250 x 12 | 24.1 | 6.0 |
| 250 x 16 | 32.2 | 6.0 |
| 250 x 20 | 40.2 | 6.0 |
| 250 x 25 | 50.3 | 6.0 |
| 300 x 6 | 14.5 | 6.0 |
| 300 x 8 | 19.3 | 6.0 |
| 300 x 10 | 24.1 | 6.0 |
| 300 x 12 | 29.0 | 6.0 |
| 300 x 16 | 38.6 | 6.0 |
| 300 x 20 | 48.3 | 6.0 |
| 300 x 25 | 60.4 | 6.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
To maintain Inconel Flat Bars, ensure proper storage in dry, cool environments to prevent oxidation. Regularly inspect for wear or damage, and clean with non-abrasive methods to preserve surface integrity.
The uses for this remarkable material are vast, particularly in sectors where failure is not an option. You’ll find our Inconel Flat Bar forming the backbone of critical components in aerospace engineering, within the high-temperature chambers of gas turbines, and throughout chemical processing plants where corrosion is a constant threat. It’s also essential in power generation and oil and gas exploration, proving its worth in everything from turbine blades to reactor core components. Essentially, wherever extreme heat, pressure, or corrosive environments are at play, this flat bar provides the necessary resilience to keep operations running safely and efficiently.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
