Welcome to Maduka Metals, your trusted partner in Abuja for premium metal solutions. We take pride in supplying high-performance Inconel X-750 bars and rods, directly supporting Nigeria’s growing industrial and engineering sectors with materials built for the most demanding challenges. Our commitment is to provide not just a product, but a reliable foundation for your most critical projects, ensuring you have access to world-class alloys right here at home.
Inconel X-750 is a nickel-chromium superalloy strengthened by adding aluminum and titanium. This specific composition gives it exceptional strength and remarkable resistance to corrosion and oxidation, even under intense heat. The bars and rods maintain these robust mechanical properties, including high tensile and creep-rupture strength, after exposure to temperatures up to 1300°F (700°C), making them incredibly durable under stress.
Specification : ASTM B 637 / ASME SB 637, AMS 5669, AMS 5698, AMS 5699
Dimensions : ASTM, ASME and API
Size : 5 mm To 500 mm
Diameter : 0.1 mm to 100 mm
Length : 100 mm To 3000 mm Long & Above

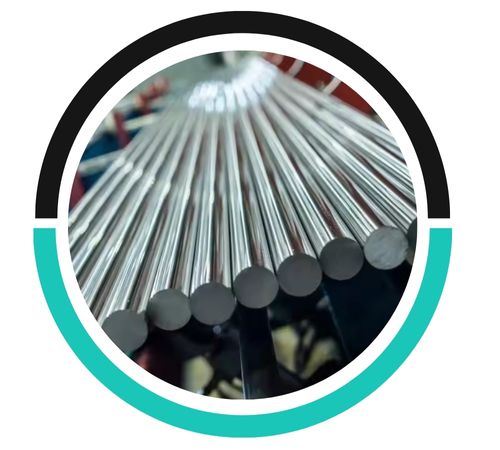

Finish : Bright, Polish & Black
Grade : Inconel X-750 – UNS N07750

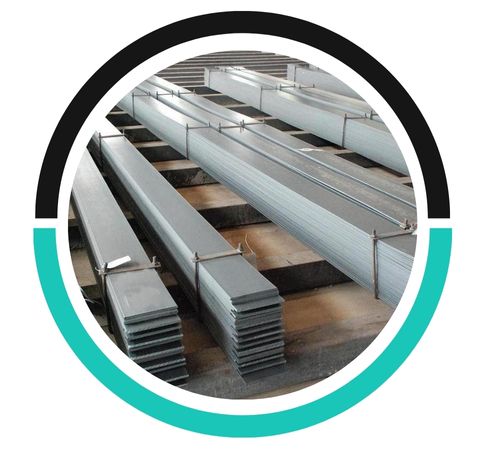

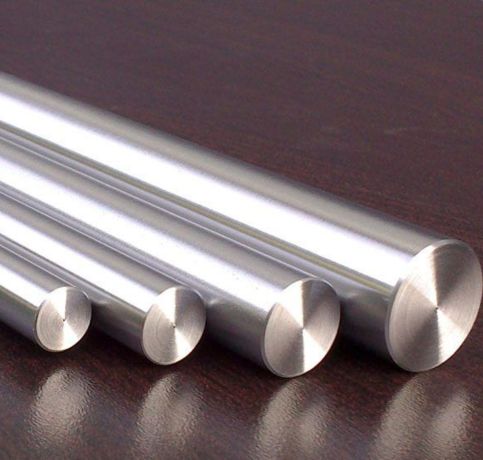

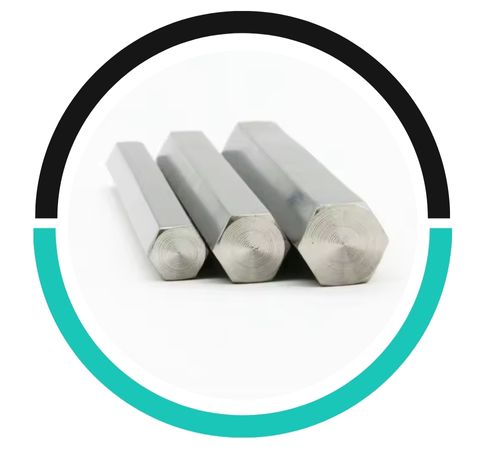

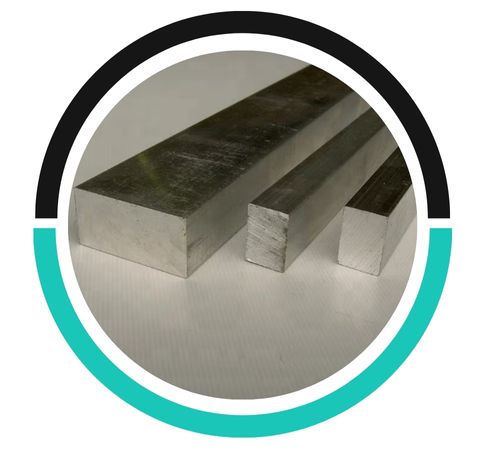

Form : Round, Square, Hex (A/F), Rectangle, Wire (Coil Form), Wire-mesh, Billet, Ingot, Forging Etc.
Our Inconel X-750 Round Bars conforms to NACE MR0175/ISO 15156
| Grade | Ni | Cr | Al | C | Mn | Ti | Cu | Si | S |
| Inconel X-750 | 70.0 min | 14.0 – 17.0 | 0.40 – 1.0 | .08 max | 1.00 max | 2.25 – 2.75 | 0.50 max | .50 max | .01 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.28 g/cm3 | 1430°C | 1267 MPa | 868 MPa | 25 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Inconel X750 | 2.4669 | N07750 |
| Temperature, °F | Mean Linear Expansion, in./in./°F x 10-6 from 70° F to Temperature Shown | Thermal Conductivity, Btu/in./hr/sq ft/°F | Specific Heat Btu/lb/°F | Diffusivity, sq ft/hr | Electrical Resistivity, ohm/circ mil/ft |
|---|---|---|---|---|---|
| -100 | 6.7 | 74 | 0.090 | 0.135 | – |
| 70 | – | 83 | 0.103 | 0.132 | 731 |
| -250 | 6.5 | 67 | 0.073 | 0.150 | – |
| -200 | 6.6 | 70 | 0.080 | 0.143 | – |
| 600 | 7.5 | 109 | 0.120 | 0.148 | 761 |
| 800 | 7.8 | 120 | 0.125 | 0.158 | 771 |
| 200 | 7.0 | 89 | 0.109 | 0.133 | 739 |
| 400 | 7.2 | 98 | 0.116 | 0.140 | 746 |
| 1000 | 8.1 | 131 | 0.130 | 0.169 | 783 |
| 1600 | 9.3 | 164 | 0.171 | 0.164 | 761 |
| 1800 | 9.8 | – | – | – | – |
| 1200 | 8.4 | 143 | 0.137 | 0.173 | 786 |
| 1400 | 8.8 | 154 | 0.151 | 0.172 | 775 |
Inconel X750 bars/rods are widely used in chemical processing, pollution control, and marine industries due to their superior corrosion resistance and durability in aggressive environments.
Yes, Inconel X750 bars/rods offer excellent resistance to strong acids like sulfuric, hydrochloric, and phosphoric acids, making them ideal for highly corrosive applications.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
You’ll find these bars and rods are indispensable in environments where failure is not an option. They are essential for constructing gas turbine components, jet engine parts, and nuclear reactors. Beyond aerospace and energy, they are widely used for high-temperature fasteners, springs, and forming tools, proving their versatility in chemical processing and other industries that demand long-term reliability under extreme thermal and mechanical pressure.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
