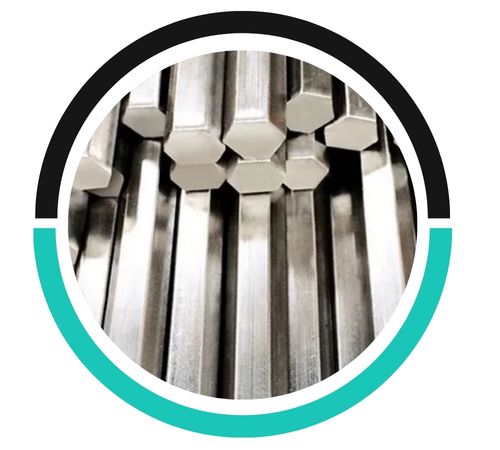

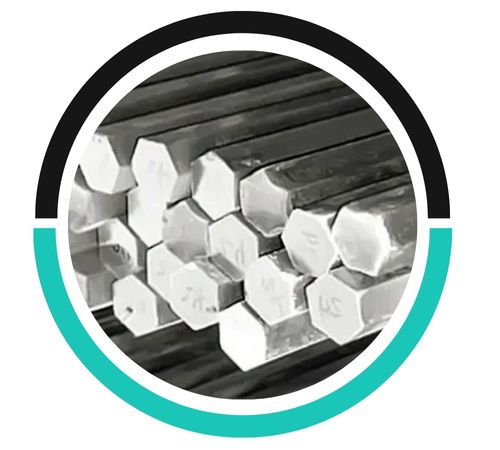

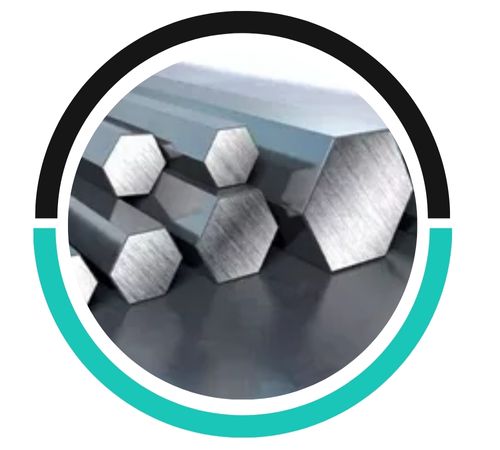

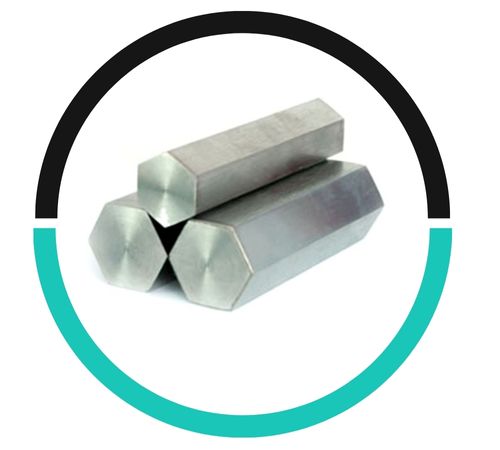

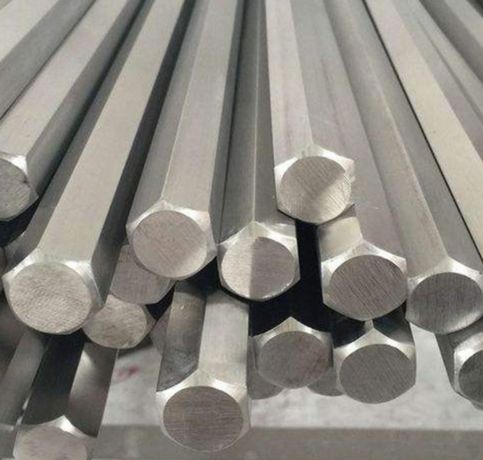

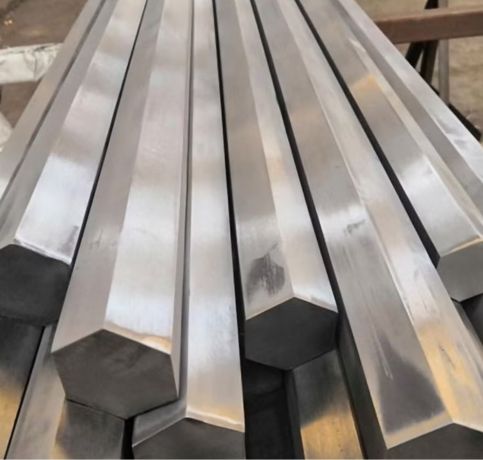

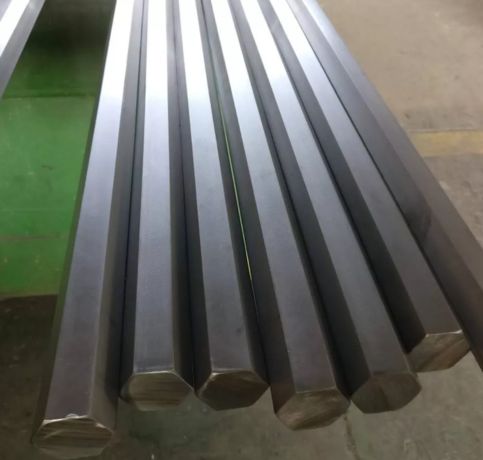

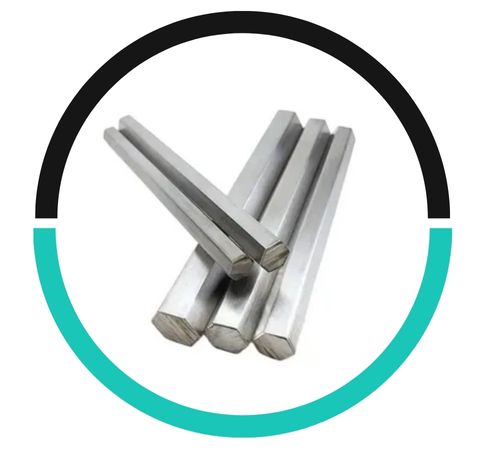

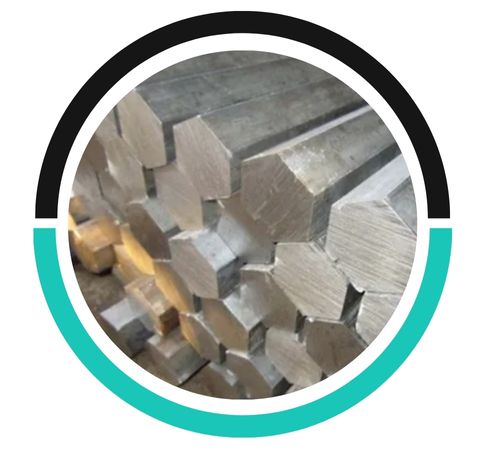

Maduka Metals, a well-respected manufacturer and supplier located in Abuja, Nigeria, is known for its top-notch **Stainless Steel 17-7 PH Hex Bars and Rods**. These bars are crafted to deliver outstanding strength, hardness, and resistance to corrosion, all while ensuring good formability and fatigue properties. By utilizing high-quality raw materials and cutting-edge technology, Maduka Metals guarantees precision, durability, and adherence to international standards. The 17-7 PH (Precipitation Hardening) stainless steel is particularly famous for its capacity to achieve impressive mechanical strength through heat treatment, making it perfect for demanding industrial and aerospace applications.
**Stainless Steel 17-7 PH Hex Bars and Rods** mainly consist of **iron**, with **16–18% chromium**, **6.5–7.75% nickel**, and **0.75–1.5% aluminum**, along with trace amounts of **manganese**, **silicon**, and **carbon (≤0.09%)**. The precipitation-hardening process boosts tensile strength up to **1310 MPa** while still maintaining good ductility and corrosion resistance. These bars show remarkable oxidation resistance, high yield strength, and minimal distortion during heat treatment, making them ideal for precision-engineered components.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Grade | C | Cb+Ta | Cr | Cu | Fe | Mn | Ni | P | S | Si |
| SS 17-7 PH | .09 | – | 16.0 – 18.0 | – | Bal | 1.0 | 6.50 – 7.75 | .04 | 0.04 | 1.0 max |
| Grade | Tensile Strength ksi (MPa) | Yield Strength 0.2% ksi (min) | Elongation % | Hardness (Rockwell) MAX |
| SS 17-7 PH | 170000 psi | 140000 psi | 6% | 38 |
| STANDARD | WERKSTOFF NR. | UNS |
| SS 17-7 PH | – | S17700 |
| HEXAGONS | ||
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
Common challenges with Stainless Steel 17-7 PH Hex Bar include difficulty in machining due to its hardness, sensitivity to stress corrosion cracking, and the need for precise heat treatment to achieve optimal properties.
Stainless Steel 17-4 PH Hex Bar and Rod should be stored in a dry, clean environment, away from moisture and corrosive substances. Ensure proper ventilation and avoid direct contact with chemicals or humidity.
Yes, Stainless Steel 17-7 PH Hex Bar and Rod are fully recyclable. Stainless steel can be melted down and reused, making it an environmentally friendly material for sustainable manufacturing processes.
You’ll find **Stainless Steel 17-7 PH Hex Bars and Rods** widely used in **aerospace components, chemical processing equipment, springs, valves, fasteners, and pressure vessels**, where a high strength-to-weight ratio and corrosion resistance are crucial. They’re also utilized in **marine environments, nuclear reactors, and mechanical instruments** due to their excellent fatigue and creep resistance. These bars excel under both high stress and varying temperature conditions, making them a go-to material for industries that require exceptional reliability, long service life, and dimensional stability in tough environments.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
