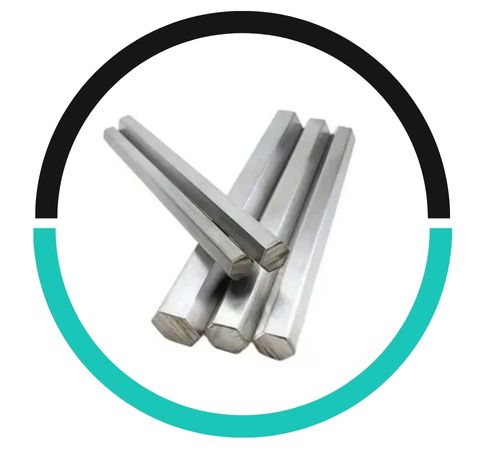

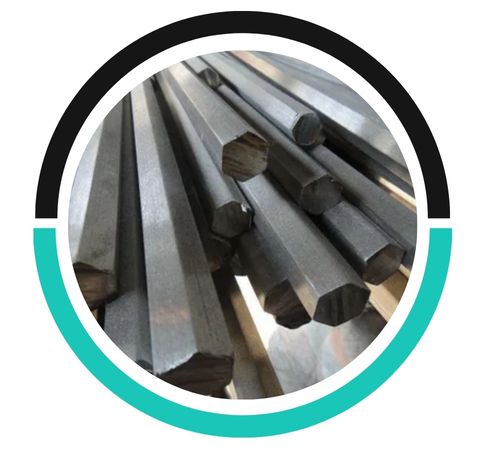

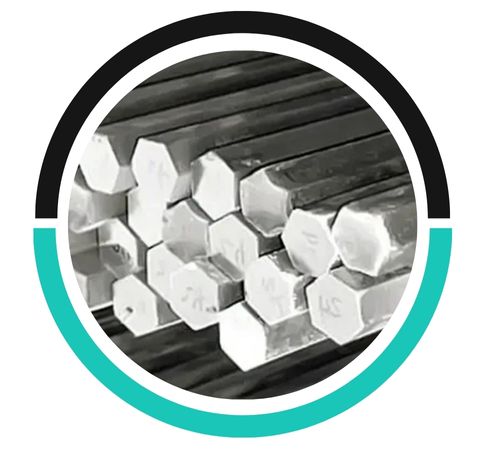

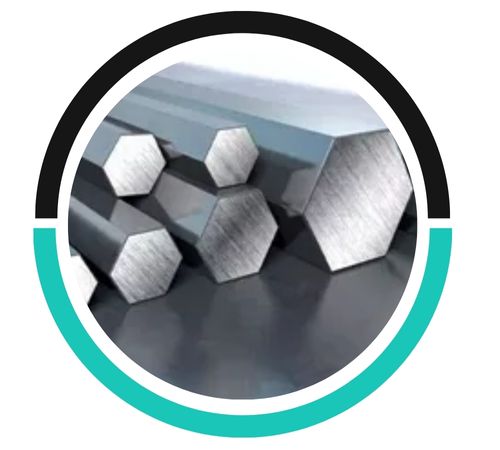

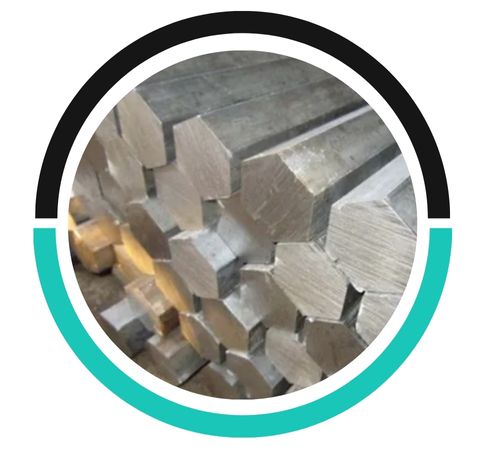

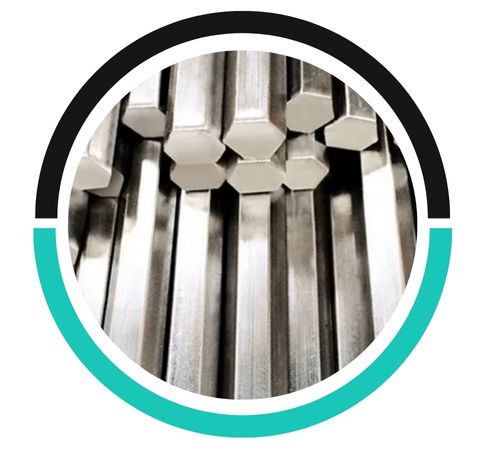

Maduka Metals, a top-notch manufacturer and supplier located in Abuja, Nigeria, is well-known for crafting high-quality **Stainless Steel 310S Hex Bars and Rods**. These bars are engineered to provide outstanding strength, along with impressive resistance to corrosion and oxidation, even in the harshest temperature conditions. By utilizing premium raw materials and cutting-edge production technology, Maduka Metals guarantees precision in dimensions, durability, and a flawless surface finish for every product. The low-carbon 310S grade not only enhances weldability but also minimizes carbide precipitation, making it a perfect fit for industries that require reliability in high heat and corrosive settings.
The **Stainless Steel 310S Hex Bars and Rods** are primarily made up of **iron**, featuring **24–26% chromium**, **19–22% nickel**, and a **low carbon content (≤0.08%)**, along with trace amounts of **manganese** and **silicon**. This austenitic stainless steel boasts impressive **tensile strength (515–700 MPa)** and remarkable **oxidation resistance up to 1100°C**. The elevated levels of chromium and nickel provide excellent protection against oxidation, sulfidation, and carburization, while the lower carbon content improves weldability and lessens the risk of sensitization during thermal exposure.
Dimensions : ASTM, ASME
Standard : ASTM / ASME SA A276, A479, ASTM A493
Length : Random, Fix & Cut Length
Size : 20MM to 150MM
| Element | C | Cr | Mn | Ni | P | S | Si |
| SS 310s | 0.08 max | 24.0 – 26.0 | 2.00 max | 19.0 – 22.0 | 0.045 max. | 0.03 max. | 1.50 max. |
| Element | Density | Melting Range,℃ | Tensile Strength | Yield Strength | Elongation | Hardness (Brinell) |
| SS 310s | 8 | 1400 ℃ | 515 MPa | 205 | 40 – 50 | 217 |
| HEXAGONS | ||
|---|---|---|
| Size(mm) | WT PER FEET IN KGS | WT PER MTR IN KGS |
| 16 | 0.55 | 1.79 |
| 18 | 0.69 | 2.27 |
| 20 | 0.85 | 2.80 |
| 22 | 1.03 | 3.39 |
| 25 | 1.33 | 4.38 |
| 28 | 1.67 | 5.49 |
| 30 | 1.92 | 6.30 |
| 32 | 2.19 | 7.17 |
| 36 | 2.77 | 9.07 |
| 38 | 3.08 | 10.11 |
| 40 | 3.41 | 11.20 |
| 45 | 4.32 | 14.18 |
| 50 | 5.34 | 17.50 |
| 56 | – | – |
| 60 | – | – |
| 65 | – | – |
| 70 | – | – |
| 75 | – | – |
| 80 | – | – |
| 90 | – | – |
| 100 | – | – |
SS 310S hex bars/rods are primarily used in high-temperature applications, such as furnace components, heat exchangers, and petrochemical industries. They are also employed in the manufacturing of furnace parts, chimney liners, catalytic reactors, and welding electrodes due to their excellent oxidation, corrosion resistance, and strength at elevated temperatures.
SS 310S offers superior corrosion resistance compared to many other stainless steel grades, especially at high temperatures, due to its higher chromium and nickel content. It excels in resisting oxidation and scaling at temperatures up to 1100°C (2012°F), making it more heat-resistant than grades like SS 304 or SS 316.
Common manufacturing processes for SS 310S hex bars/rods include hot rolling, cold drawing, and extrusion. These methods shape the alloy into hexagonal rods while maintaining its mechanical properties. Heat treatment processes like annealing are also used to enhance corrosion resistance and improve the material's strength and ductility.
You’ll find **Stainless Steel 310S Hex Bars and Rods** commonly used in **furnace parts, heat exchangers, kilns, burners, boiler components, and combustion chambers** due to their exceptional heat and corrosion resistance. They’re also utilized in **petrochemical plants, power generation units, food processing equipment, and refineries**, where maintaining stability at high temperatures is essential. These bars retain their strength and integrity even when exposed to heat and corrosive gases for extended periods. With their blend of durability, heat resistance, and structural stability, 310S stainless steel is the go-to choice for demanding industrial and engineering applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
