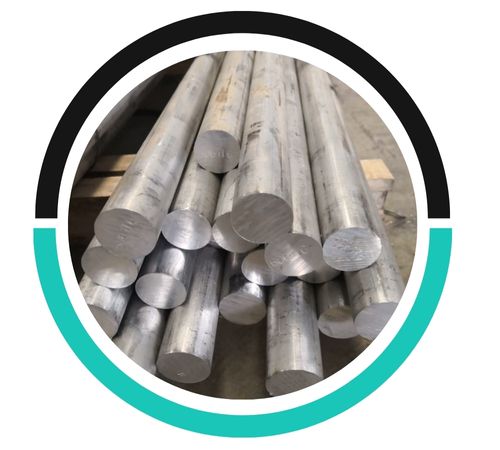

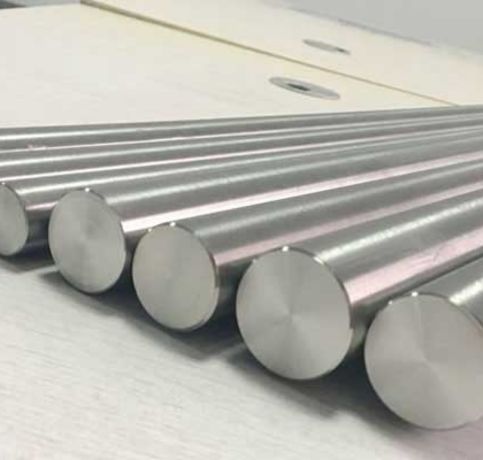

Maduka Metals, based in Abuja, Nigeria, stands out as a top manufacturer and supplier of high-quality Tantalum Bars and Rods. These products are celebrated for their remarkable corrosion resistance, impressive melting point, and durability. Crafted to meet international standards, they promise reliable performance even in the toughest industrial and chemical settings. Maduka Metals caters to a variety of sectors, including chemical processing, electronics, aerospace, and medical industries, offering premium tantalum solutions. Thanks to advanced production techniques and rigorous quality control, each Tantalum Bar and Rod boasts superior mechanical properties, long-lasting stability, and the ability to withstand extreme conditions, making them perfect for critical applications in highly corrosive or high-temperature environments.
Tantalum Bars and Rods are primarily made of tantalum (Ta) with a purity level usually exceeding 99.95%, ensuring exceptional chemical and mechanical performance. On the mechanical side, tantalum has a tensile strength of about 200–300 MPa, a melting point of 3017°C, and excellent ductility, which allows it to be shaped precisely without cracking. Its high density, thermal conductivity, and corrosion resistance make it ideal for extreme chemical, high-temperature, and vacuum applications, providing reliability and durability where other metals might falter.
| Specification | ASTM B365, ASME SB365 |

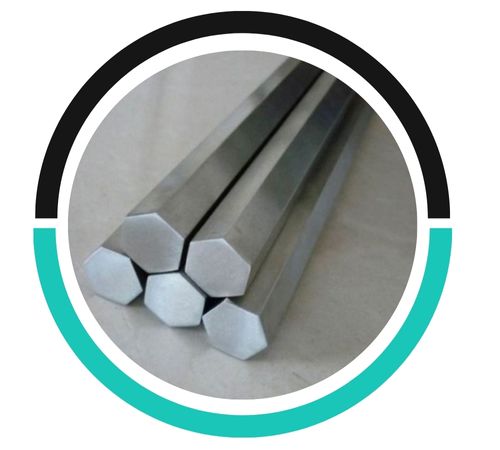

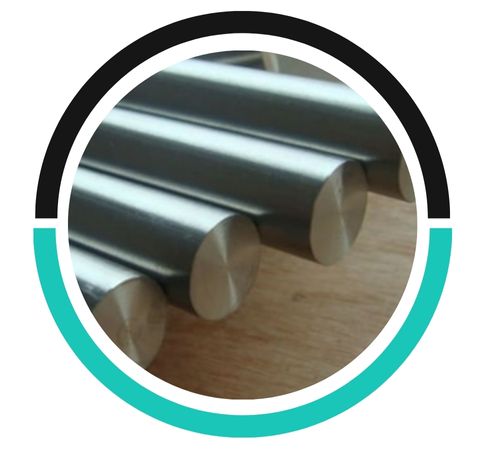

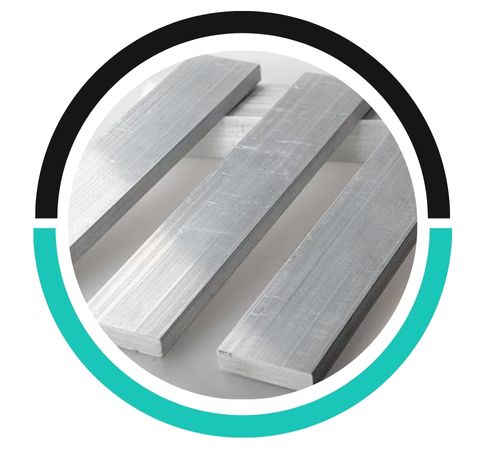

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |
| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Type | Ta | W | Nb |
|---|---|---|---|
| R05200 / R05400 | Unalloyed (Pure) | – | – |
| R05252 | 97.5 % | 2.5 % | – |
| R05255 | 90 % | 10 % | – |
| R05240 | 60 % | – | 40 % |
| Type | Ultimate Tensile Strength min.psi (Mpa) | Yeild Strength min.psi (Mpa) | Elongation, % (min) |
|---|---|---|---|
| R05200 / R05400 | 25,000(172) | 15,000(103) | 25 |
| R05252 | 40,000(276) | 20,000(138) | 20 |
| R05255 | 70,000(482) | 55,000(379) | 20 |
| R05240 | 35,000(241) | 15,000(103) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, tantalum bars and rods are highly corrosion-resistant, especially to acids, alkalis, and high temperatures, making them ideal for harsh environments like chemical processing and aerospace applications.
Annealed tantalum bars and rods are heat-treated for improved ductility and softness, while non-annealed ones are harder and more brittle, retaining their as-cast properties. Annealed versions are easier to shape.
These Tantalum Bars and Rods find extensive use in industries that require outstanding corrosion resistance, high-temperature stability, and mechanical reliability. In the chemical sector, they are utilized for reactors, heat exchangers, and piping systems that handle aggressive acids and corrosive materials. The electronics industry relies on tantalum for capacitors, semiconductors, and other essential components. In aerospace and power generation, these bars and rods are employed in high-temperature and vacuum applications. Moreover, Tantalum Bars and Rods are also suitable for medical devices, surgical instruments, and laboratory equipment, where chemical inertness is crucial.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
