Maduka Metals, a reputable manufacturer and supplier located in Abuja, Nigeria, specializes in top-notch Tantalum R05200 Bars and Rods. These products are celebrated for their remarkable corrosion resistance, high melting point, and durability. Crafted to meet international standards, they promise reliable performance even in the most demanding industrial, chemical, and high-temperature settings. Maduka Metals caters to a variety of sectors, including chemical processing, aerospace, electronics, and medical industries, offering premium tantalum solutions. Thanks to advanced manufacturing techniques and rigorous quality control, each Tantalum R05200 Bar and Rod boasts superior mechanical properties, long-lasting stability, and resilience, making them perfect for critical applications in harsh and extreme environments.
The Tantalum R05200 Bars and Rods are primarily made from high-purity tantalum (Ta), typically exceeding a purity level of 99.95%. This ensures exceptional chemical resistance and mechanical performance. The composition grants excellent ductility, a high melting point of 3017°C, and outstanding resistance to corrosion in aggressive acids. Mechanically, R05200 tantalum shows a tensile strength of around 200–300 MPa and can elongate up to 30%, allowing for precise shaping without cracking. Its high density, thermal conductivity, and chemical inertness make it ideal for demanding industrial, chemical, and high-temperature applications.
| Specification | ASTM B365, ASME SB365 |

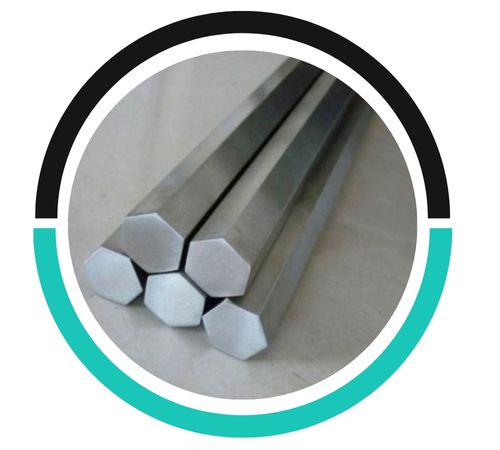

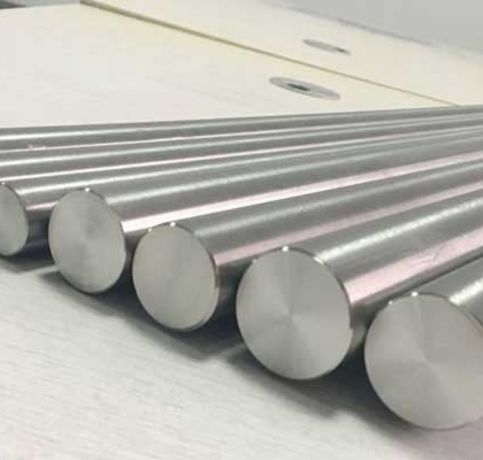

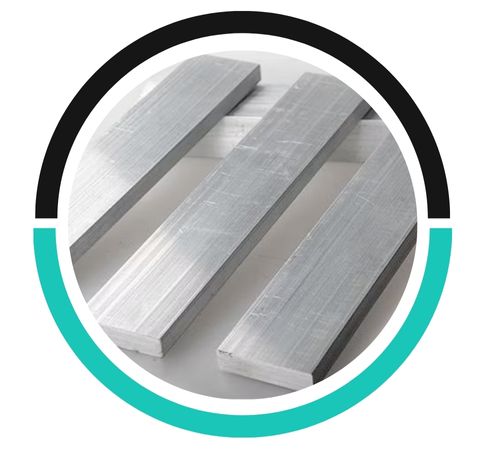

| Tantalum Bar Form | Tantalum Round, Hex, Flat, Half Round, Oval, Rectangular in Black & Bright Finish |

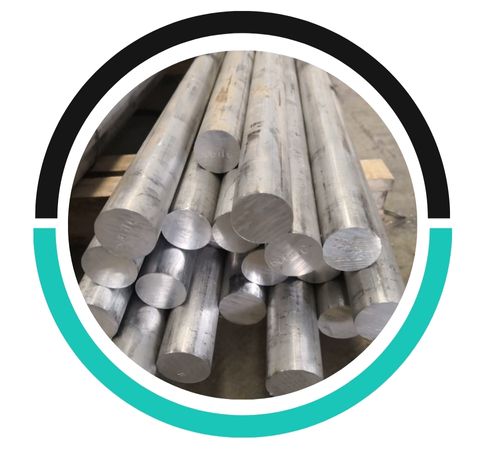

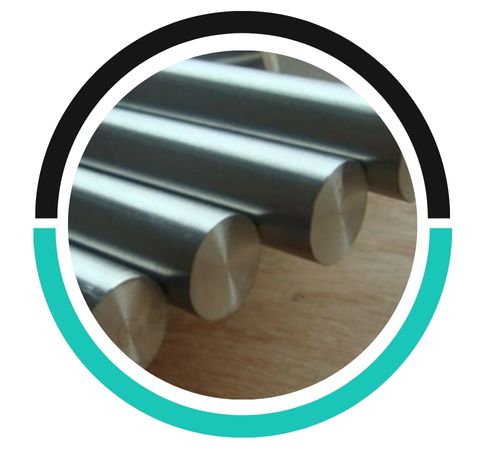

| Tantalum Round Bar Diameter | 0.125″ (3.18mm)~2.5″ (63.5mm) |
| Length | 2-12m |
| Purity | ≥99.95% or 99.99% |
| Tantalum Round Bar Length | 1-12m, Random, Fix & Cut Length or as per clients’ requirement |
| Tantalum | C | O | N | H | Nb | Fe | Ti | W | Mo | Si | Ni | Ta |
| R05200 | 0.010 | 0.015 | 0.010 | 0.0015 | 0.100 | 0.010 | 0.010 | 0.050 | 0.020 | 0.005 | 0.010 | Remainder |
| Grade | Tensile strength δbpsi (MPa)， ≥ | Yield strength δ0.2， psi (MPa)，≥ | Elongation in 1″/2″ gage length， ％， ≥ |
|---|---|---|---|
| R05200 | 30000 (207) | 20000 (138) | 25 |
| 3/16” (4.76mm) | 25mm | 2.1/2” (63.5mm) |
| ¼” (6.35mm) | 1” (25.4mm) | 2.3/4” (69.85mm) |
| 5/16” (7.94mm) | 1.1/8” (28.58mm) | 3” (76.2mm) |
| 3/8” (9.53mm) | 30mm | 3.1/4” (82.55mm) |
| 10mm | 1.1/4” (31.75mm) | 3.1/2” (88.9mm) |
| 12mm | 1.3/8” (34.93mm) | 4” (101.6mm) |
| ½” (12.7mm) | 1.1/2” (38.1mm) | 4.1/2” (114.3mm) |
| 15mm | 40mm | 5” (127mm) |
| 5/8” (15.88mm) | 1.3/4” (44.45mm) | 5.1/2” (139.7mm) |
| ¾” (19.05mm) | 2” (50.8mm) | 6” (152.4mm) |
| 20mm | 2.1/8” (53.98mm) | 7” (177.8mm) |
| 7/8” (22.23mm) | 2.1/4” (57.15mm) | 8” (203.2mm) |
| Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr | Size | Kgs / Foot | Kgs / Mtr |
|---|---|---|---|---|---|---|---|---|
| 3mm | 0.017 | 0.055 | 20mm | 0.753 | 2.470 | 3″ | 10.900 | 35.762 |
| 1/8″ | 0.019 | 0.062 | 22mm | 0.908 | 2.979 | 3-1/4″ | 12.800 | 41.996 |
| 5/32″ | 0.029 | 0.095 | 7/8″ | 0.926 | 3.038 | 3-1/2″ | 14.850 | 48.772 |
| 4mm | 0.030 | 0.098 | 24mm | 1.080 | 3.543 | 3-3/4″ | 17.001 | 55.780 |
| 3/16″ | 0.043 | 0.141 | 25mm | 1.180 | 3.871 | 4″ | 19.306 | 63.340 |
| 5mm | 0.047 | 0.154 | 1″ | 1.210 | 3.970 | 4-1/4″ | 21.908 | 72.249 |
| 7/32″ | 0.058 | 0.190 | 26mm | 1.271 | 4.170 | 4-1/2″ | 24.4487 | 80.340 |
| 6mm | 0.068 | 0.223 | 27mm | 1.368 | 4.490 | 4-3/4″ | 27.366 | 90.249 |
| 1/4″ | 0.076 | 0.249 | 1-1/8″ | 1.534 | 5.033 | 5″ | 30.461 | 99.940 |
| 7mm | 0.091 | 0.298 | 30mm | 1.691 | 5.548 | 5-1/2″ | 36.690 | 121.000 |
| 5/16″ | 0.118 | 0.387 | 1-1/4″ | 1.924 | 6.349 | 6″ | 43.860 | 143.900 |
| 8mm | 0.120 | 0.398 | 32mm | 1.894 | 6.314 | 6-1/2″ | 51.093 | 167.630 |
| 9mm | 0.152 | 0.498 | 1-3/8″ | 2.303 | 7.550 | 7″ | 59.432 | 196.000 |
| 3/8″ | 0.170 | 0.557 | 35mm | 2.390 | 7.553 | 7-1/2″ | 68.226 | 225.000 |
| 10mm | 0.189 | 0.620 | 36mm | 2.438 | 7.999 | 8″ | 77.586 | 254.55 |
| 11mm | 0.228 | 0.748 | 38mm | 2.792 | 8.903 | 10″ | 121.048 | 397.140 |
| 7/16″ | 0.232 | 0.761 | 1-1/2″ | 2.715 | 8.951 | |||
| 12mm | 0.271 | 0.889 | 40mm | 3.009 | 9.872 | |||
| 1/2″ | 0.303 | 0.994 | 1-5/8″ | 3.200 | 10.449 | |||
| 13mm | 0.318 | 1.043 | 1-3/4″ | 3.712 | 12.179 | |||
| 14mm | 0.368 | 1.207 | 45mm | 3.807 | 12.555 | |||
| 9/16″ | 0.383 | 1.256 | 1-7/8″ | 4.260 | 13.977 | |||
| 15mm | 0.424 | 1.391 | 48mm | 4.330 | 14.205 | |||
| 5/8″ | 0.473 | 1.551 | 50mm | 4.698 | 15.414 | |||
| 16mm | 0.481 | 1.578 | 2″ | 4.848 | 15.906 | |||
| 17mm | 0.543 | 1.791 | 2-1/8″ | 5.475 | 17.963 | |||
| 11/16″ | 0.573 | 1.880 | 2-1/4″ | 6.135 | 20.128 | |||
| 18mm | 0.610 | 2.001 | 60mm | 6.768 | 22.205 | |||
| 3/4″ | 0.682 | 2.237 | 2-3/8″ | 6.838 | 22.435 | |||
| 2-1/2″ | 7.576 | 24.856 | ||||||
| 2-5/8″ | 8.354 | 27.409 | ||||||
| 2-3/4″ | 9.169 | 30.083 |
Yes, Tantalum R05200 bars and rods are highly corrosion-resistant, particularly against acids like hydrochloric and sulfuric acid, making them ideal for chemical processing, medical, and aerospace applications.
Yes, Tantalum R05200 bars are highly customizable to meet specific requirements, including dimensions, tolerances, surface finishes, and other specifications, ensuring suitability for various industrial applications and performance needs.
Tantalum R05200 Bars and Rods find extensive use in industries that demand materials with exceptional corrosion resistance, high-temperature stability, and mechanical reliability. In the chemical and petrochemical sectors, they are utilized for reactors, heat exchangers, piping systems, and storage tanks that come into contact with highly corrosive acids and chemicals. The electronics industry employs them in capacitors, semiconductors, and other essential components. In aerospace and power generation, these bars and rods are essential for high-temperature, vacuum, and structural applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
