Welcome to Maduka Metals, your trusted partner in Abuja for high-performance metal solutions. We specialize in manufacturing and supplying superior Incoloy 800H forgings, engineered to meet the rigorous demands of Nigeria’s most challenging industries. Our commitment is to provide local businesses with reliable, high-quality components that ensure longevity and efficiency in critical applications, backed by our deep technical expertise and dedication to customer satisfaction right here in the heart of the nation.
Incoloy 800H is an austenitic nickel-iron-chromium alloy known for its exceptional strength at high temperatures. Its carefully balanced composition includes significant nickel, chromium, and iron content, with added aluminum and titanium for stability. This combination grants the forgings outstanding creep rupture strength and remarkable resistance to oxidation and carburization, making them structurally sound and durable even under extreme thermal stress and corrosive environments.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800H | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .15-.60 | .15-.60 | .05-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800H | N08810 | 1.4958 | Z8NC32-21 | X10NiCrAlTi32-20 | NCF 800H | NA 15(H) | ЭИ670 | XH32T |

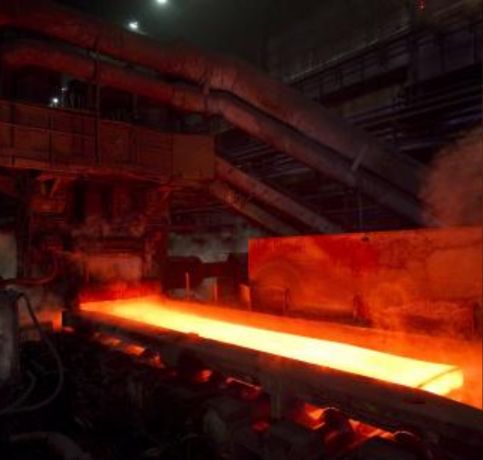

The ideal temperature range for forging Incoloy 800H is between 2100°F and 2250°F (1149°C to 1232°C). This range ensures optimal workability and preserves the material’s mechanical properties.
Post-forging operations for Incoloy 800H typically include annealing to relieve stress and enhance ductility, followed by heat treatment to achieve desired mechanical properties. Surface cleaning and inspection for defects are also essential to ensure quality.
To determine if Incoloy 800H Forgings meet your specific needs, review material specifications, including composition and mechanical properties, and consult with suppliers for customized testing or performance data. Additionally, consider your application's temperature, corrosion, and mechanical requirements.
The robustness of our Incoloy 800H forgings makes them indispensable in sectors where failure is not an option. They are ideally used in vital components for petrochemical furnaces, power generation systems, and industrial heat treatment equipment. You will also find them performing reliably in heat exchangers, nuclear reactors, and tubing for ethylene production, proving essential for operations that demand unwavering performance under intense heat and pressure, ensuring safety and continuity in industrial processes.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
