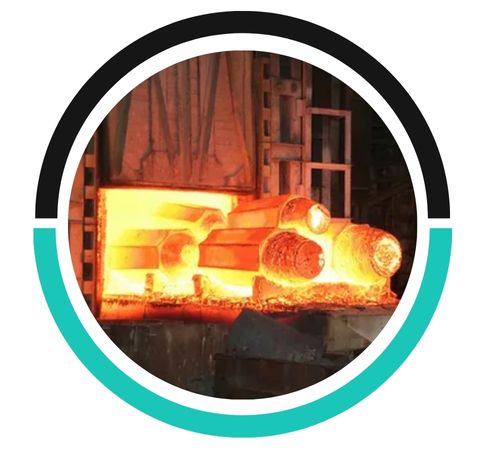

Welcome to Maduka Metals, your trusted partner in Abuja for high-performance metal solutions. We specialize in manufacturing and supplying premium Incoloy 800HT forgings, engineered to meet the most demanding industrial challenges. Our commitment is to provide local industries with reliable, top-quality components that deliver exceptional strength and longevity, supporting the growth and resilience of Nigeria’s key sectors right from the heart of the capital.
Incoloy 800HT is an austenitic nickel-iron-chromium alloy strengthened by the careful addition of titanium and aluminum. Its composition ensures outstanding mechanical properties, including high tensile and creep-rupture strength, especially at elevated temperatures. This material maintains excellent stability and resistance to oxidation, making it exceptionally durable under thermal stress, which is crucial for components that must perform reliably in extreme heat over long periods.
Specifications ASTM B564 / ASME SB564, AMS 5766
Flat bar blocks up to 27″ width and 15,000 lbs.
Cylinders and sleeves up to 50″ maximum O.D. and 65″ maximum length
Discs and hubs up to 50″ diameter and 20,000 lbs.
Rolled, hand forged or mandrel forged rings up to 84″ maximum O.D. and 40″ maximum length
Rounds, shafts and step shafts up to 144″ maximum length and 20,000 lbs.
| Grade | Ni | Fe | Cr | Cu | Ti | Al | C | Mn | S | Si |
| Alloy 800HT | 30.0-35.0 | 39.5 min | 19.0-23.0 | .75 max | .25-.60 | .85-1.20 | .06-.10 max | 1.5 max | .015 max | 1.0 max |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 7.94 g/cm3 | 1350-1400 ℃ | Psi – 75,000 , MPa -520 | Psi – 30,000 , MPa – 205 | 30 – 35 % |
| Density | 0.287 lb/in3 / 7.94 g/cm3 |
| Melting Point | 2475 – 2525 °F/ 1357 – 1385 °C |
| Specific Heat @ 70°F | 0.11 Btu/lb•°F |
| Permeability @ 70°F Annealed | 1.014 (200 Oersted) |
| Curie Temperature | -115 °C/ -175 °F |
| Elastic Modulus | 28.50 X 106 psi |
| Electrical Resistivity @ 70°F | 595 ohm•circ mil/ft |
| Annealling Incoloy 800 | 983 – 1038 °C / 1800 – 1900 °F |
| Annealling Incoloy 800H / Ht | 1147 – 1177°C / 2100 – 2150 °F |
| Quench | Rapid Air / Water |
| STANDARD | UNS | WNR. | AFNOR | EN | JIS | BS | GOST | OR |
| Incoloy 800HT | N08811 | 1.4959 | – | X8NiCrAlTi32-21 | NCF 800HT | NA 15(HT) | ЭИ670 | XH32T |
To determine if Incoloy 800HT Forgings meet your specific needs, assess their high-temperature resistance, oxidation, and carburization properties against your application requirements. Consulting with a supplier for detailed material specifications and testing options can also ensure compatibility.
The ideal temperature range for forging Incoloy 800HT is between 2100°F (1149°C) and 2300°F (1260°C). This range ensures optimal workability, mechanical properties, and maintains the material's strength and resistance to oxidation.
Temperature control is crucial for maintaining the desired mechanical properties of forged Incoloy 800HT, as overheating or insufficient heating can lead to reduced strength and ductility. Proper temperature management ensures optimal grain structure, resistance to oxidation, and overall performance in high-temperature applications.
The remarkable heat resistance of Incoloy 800HT forgings makes them indispensable in critical applications. They are commonly used in furnace components, heat-treating equipment, and industrial heating systems. You will also find them in the chemical processing and petrochemical industries, within ethylene furnace tubing and reformers, where their ability to withstand high temperatures and corrosive environments ensures both safety and operational efficiency for demanding projects.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
