Maduka Metals, a leading manufacturer and supplier located in Abuja, Nigeria, specializes in high-quality Titanium Grade 3 Bars and Rods that are designed for exceptional strength, corrosion resistance, and durability. These products are crafted to meet international standards, ensuring they perform consistently well in even the most demanding industrial settings. Maduka Metals caters to a diverse array of industries, including aerospace, chemical processing, marine, and medical equipment, offering dependable titanium solutions. Thanks to cutting-edge manufacturing technology and strict quality control measures, each Titanium Grade 3 Bar and Rod boasts outstanding mechanical properties, a long service life, and the ability to withstand harsh environments, making them perfect for both structural and specialized engineering needs.
Titanium Grade 3 Bars and Rods are made from commercially pure titanium, enhanced with trace elements like oxygen, nitrogen, carbon, and iron, which boost strength while maintaining excellent corrosion resistance. In terms of mechanics, Grade 3 titanium has a tensile strength ranging from about 480 to 620 MPa and an elongation of 20 to 25%, providing impressive toughness and fatigue resistance. Its low density, remarkable resistance to oxidation, and capability to endure chemically aggressive environments make it an ideal choice for structural and industrial applications that require long-lasting durability and reliability.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

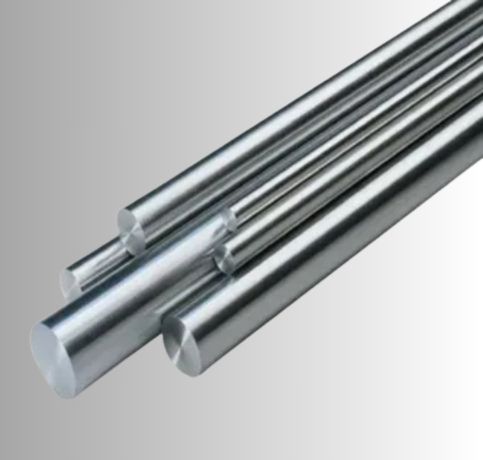

| Round bar size : | Diameter: 3-~800mm |

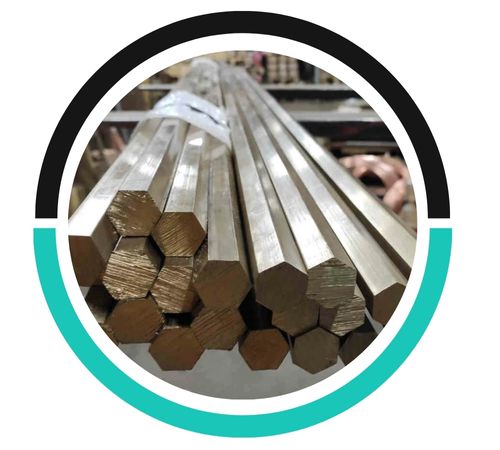

| Hex Bar size : | 2-100mm A/F |

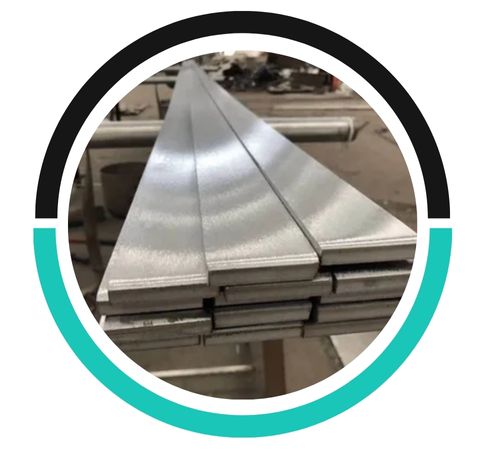

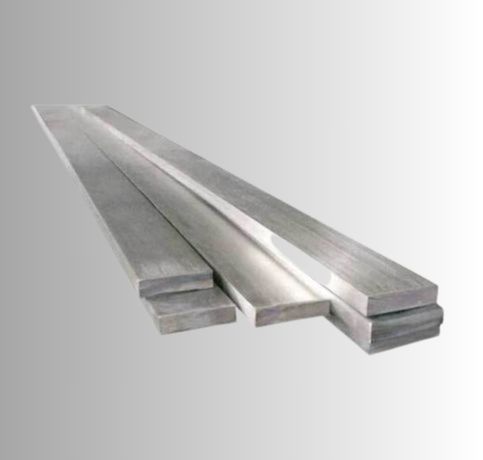

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

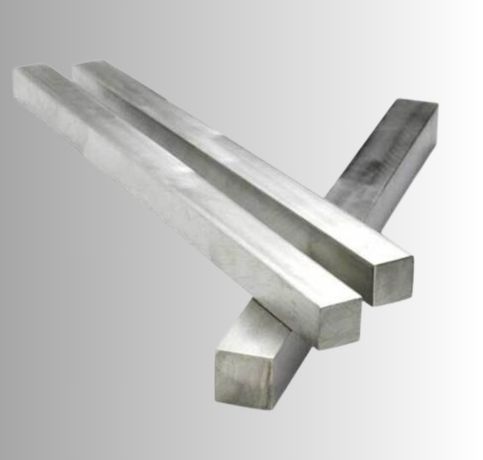

| Square bar size : | 4 to 100mm |
| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

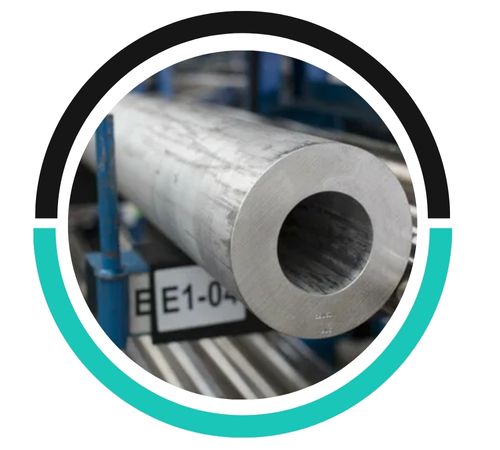

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 3 | 3.7055 | R50550 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 3 | 0..08 max | 0.05 max | 0.35 max | 0.015 max | Bal | 0.30 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 450 | 30 | 18 % | 90 |
| Density | 0.163 lbs/in³ ,(4.51 g/cm³) |
| Mean Coefficient of Thermal Expansion | in/in/°F (mm/m/°C): 70- 212°F (20- 100°C) 4.78 x 10-6(8.6) |
| Thermal Conductivity | BTU-in/h-ft-°F (W/m-°K): At 70°F (21°C): 138 (19.9) |
| Modulus of Elasticity, ksi (MPa) | 15.2 x 10³ (105 x 10³) in tension |
| Melting Point | 3020°F (1660°C) |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |

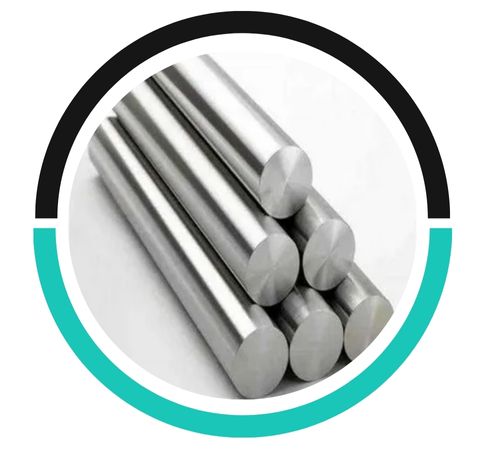

| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 3 Round Bars Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, Titanium Grade 3 has excellent corrosion resistance in aggressive environments like seawater, chemicals, and high-temperature settings, making it ideal for marine and chemical processing industries.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
These Titanium Grade 3 Bars and Rods find extensive use in industries that prioritize high strength, corrosion resistance, and biocompatibility. In aerospace, they are utilized for structural components, fasteners, and engine parts. The chemical and marine sectors use them in piping systems, heat exchangers, and tanks that face corrosive conditions. In the medical field, these bars and rods are perfect for surgical instruments and implants. Additionally, Titanium Grade 3 Bars and Rods are employed in automotive, power generation, and high-performance engineering applications where durability, strength, and resistance to extreme conditions are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
