Maduka Metals, a prominent manufacturer and supplier located in Abuja, Nigeria, focuses on producing top-notch Titanium Grade 4 Bars and Rods. These products are designed for exceptional strength, corrosion resistance, and durability. Crafted to meet international standards, they promise reliable performance even in the toughest industrial settings. Maduka Metals caters to a variety of sectors, including aerospace, chemical processing, marine, and medical equipment, offering high-quality titanium solutions. Thanks to advanced production methods and rigorous quality control, each Titanium Grade 4 Bar and Rod boasts impressive mechanical properties, a long service life, and the ability to withstand harsh environments, making them perfect for critical structural and engineering tasks.
Titanium Grade 4 Bars and Rods are mainly made from commercially pure titanium, with small amounts of oxygen, nitrogen, carbon, and iron added to boost strength without sacrificing corrosion resistance. In terms of mechanics, Grade 4 titanium has a tensile strength ranging from about 550 to 700 MPa and an elongation of 20 to 25%, providing excellent toughness and resistance to fatigue. Its lightweight nature, high corrosion resistance, and capability to perform in high-temperature and chemically aggressive environments make it a great choice for both structural and specialized engineering applications, ensuring durability and long-lasting performance.
| Standards : | ASTM B348, B863 / ASME SB348, SB863 |
| Dimensions : | EN, DIN, JIS, ASTM, BS, ASME, AISI |
| Wire : | Thickness starting from 0.05mm |

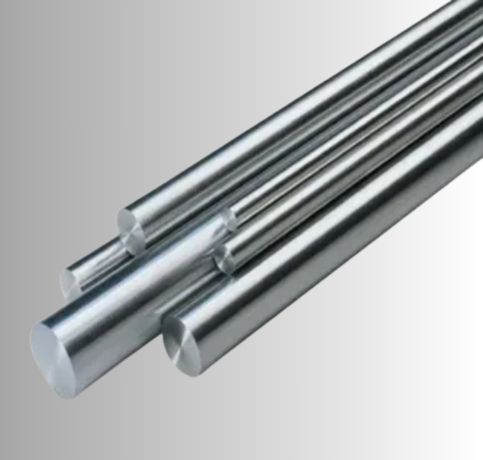

| Round bar size : | Diameter: 3-~800mm |

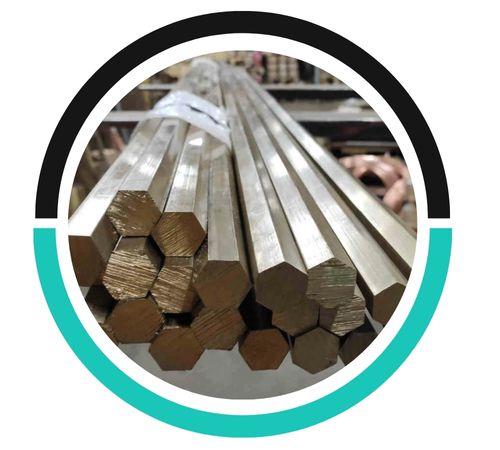

| Hex Bar size : | 2-100mm A/F |

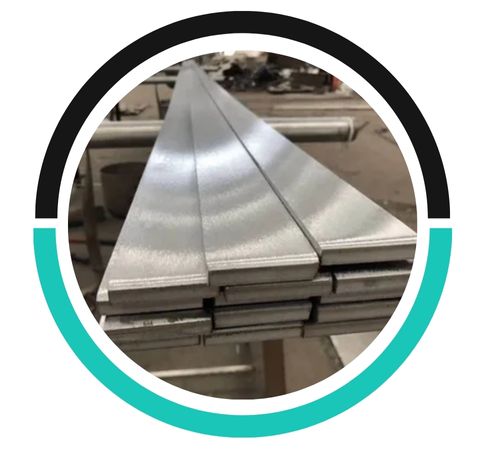

| Flat bar size : | Thickness: 2 -100mm / Width: 10 to 500mm |

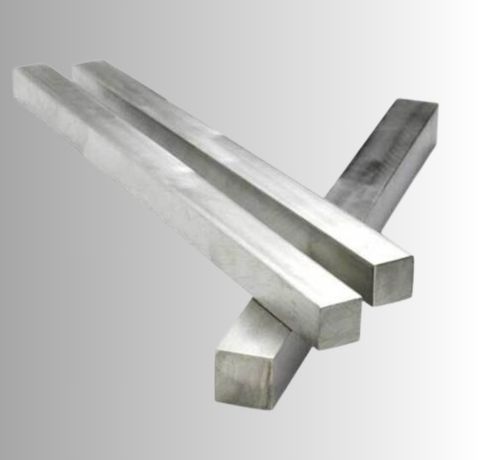

| Square bar size : | 4 to 100mm |

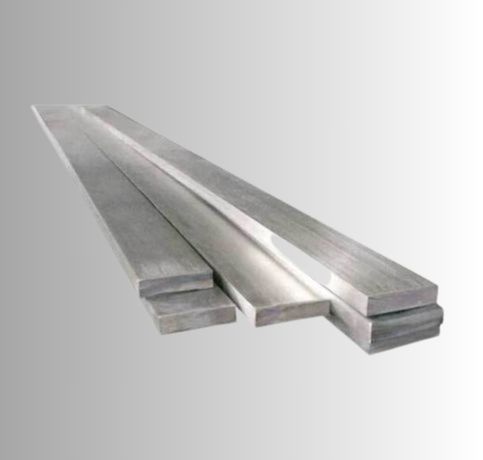

| Rectangular Bars Size : | 33 x 30mm to 295 x 1066mm |

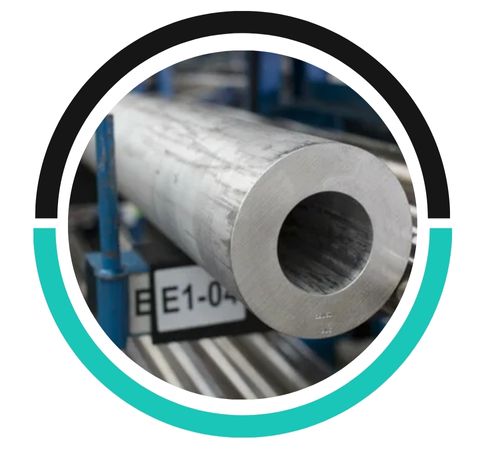

| Hollow Bar : | 32mm OD x 16mm ID to 250mm OD x 200mm ID |
| Tolerance : | H8, H9, H10, H11, H12, H13K9, K10, K11, K12 or as per clients’ requirements |
| Finish : | Black, Bright Polished, Rough Turned, NO.4 Finish, Matt Finish, BA Finish |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr 4 | 3.7065 | R50700 |
| Grade | C | N | O | H | Ti | Fe |
| Titanium Grade 4 | 0..08 max | 0.05 max | 0.40 max | 0.015 max | Bal | 0.50 max |
| Tensile Strength | Reduction of area | Elongation | Hardness |
| 552 | 25 % | 15 % | 100 |
| Density | Electrical conductivity (% IACS) | Thermal conductivity (BTU-in/hr-ft²-°F) | Specific heat (BTU/lb-°F) | Thermal expansion (1/°F) | Melting Point (°F) |
| 0.163 | 2.87 | 119 | 0.127 | 0.00000478 | 3020 |
| Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
| Cold Drawn and Ground | 10.00 – 75.00 | 5/6″ – 2.50″ | h8-h9-h10-h11 |
| Peeled and Polished | 40.00 – 150.00 | 1.50″ – 6.00″ | h11, h11-DIN 1013 |
| Peeled and Ground | 20.00 – 50.00 | 3/4″ – 2.00″ | h9-h10-h11 |
| Cold Drawn and Polish | 3.00 – 75.00 | 1/8″ – 3.00″ | h8-h9-h10-h11 |
Titanium Grade 4 Bars Standard lengths of 2000 mm up to 6000 mm. Cut to size on request (tolerance +2/-0 mm).
| 5.0 | 45.0 |
| 6.0 | 50.0 |
| 7.0 | 55.0 |
| 8.0 | 60.0 |
| 9.0 | 65.0 |
| 10.0 | 70.0 |
| 12.0 | 75.0 |
| 16.0 | 80.0 |
| 20.0 | 90.0 |
| 25.0 | 100.0 |
| 30.0 | 130.0 |
| 35.0 | 160.0 |
| 40.0 | 200.0 |
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
Titanium Grade 4 Bars and Rods are composed of 90% titanium, 6% aluminum, and 4% vanadium, offering excellent strength, corrosion resistance, and durability.
Yes, Titanium Grade 3 has good weldability, making it suitable for various applications where welding is required.
These Titanium Grade 4 Bars and Rods find extensive use in industries that require high strength, corrosion resistance, and biocompatibility. In aerospace, they are utilized for structural components, fasteners, and engine parts. The chemical and marine sectors use them for heat exchangers, piping systems, and tanks that face corrosive conditions. In the medical field, these bars and rods are perfect for surgical instruments and implants due to their biocompatibility. Additionally, Titanium Grade 4 Bars and Rods are employed in power generation, automotive, and high-performance engineering applications where reliability, strength, and resistance to harsh conditions are essential.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
