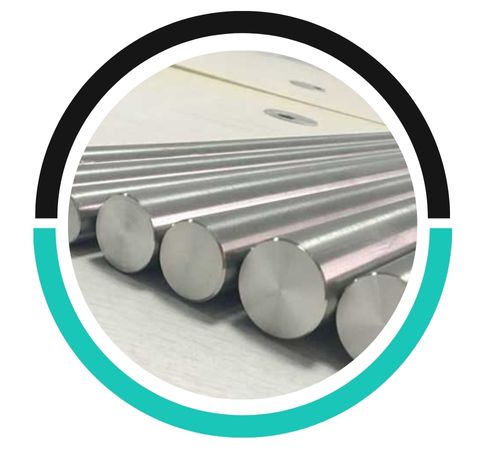

Maduka Metals is a reputable manufacturer and supplier located in Abuja, Nigeria, known for its top-notch Titanium Round Bars. With a strong focus on quality, the company delivers precision-engineered titanium products that adhere to global standards for strength, corrosion resistance, and overall performance. Maduka Metals caters to a variety of industries, ensuring that their products are of superior quality, reliable, and delivered on time. Their Titanium Round Bars are well-regarded for their durability and lightweight characteristics, making them perfect for demanding industrial applications. Thanks to their commitment to innovation and customer satisfaction, they have become a prominent name in the titanium products market, not just in Nigeria but beyond.
Titanium Round Bars are mainly made of titanium, with small amounts of alloying elements like aluminum, vanadium, molybdenum, and iron to boost their strength and resistance to corrosion. These bars boast remarkable mechanical properties, including high tensile strength, low density, and excellent toughness, even in extreme temperatures. They are highly resistant to oxidation, fatigue, and corrosion from seawater. Additionally, Titanium Round Bars offer a great strength-to-weight ratio, making them ideal for applications that require materials that are both lightweight and durable. Their outstanding mechanical stability guarantees a long service life and reliable performance, even in tough conditions.
| Grade | Gr 1, Gr 2, Gr 3, Gr 4, Gr 5, Gr 7, Gr 9, Gr 12, Gr 23, TA1-TA4, TA7-TA10, TA15-TA18, GR1-GR5, GR6,GR7, GR9, GR11, GR12, TI-6AL-4V, TI-6AL-4VELI,GR23 | |||||
| Sizes | Minimum diameter: 0.040 inch or 1.00 mm Maximum diameter: 14.000 inch or 400.00 mm | |||||
| Standard | ASTM F136, ASTM B348, ASTM F136, ASTM F67, AMS4928, ISO-5832-2(3), MIL-T-9047G, JIS etc | |||||
| Type | Ti square bar, Ti round bar, Ti hexagonal bar, Ti flat bar, Titanium Alloy Bars, Ti Billets, Forgings, and Forging Stock | |||||
| Condition | R/M /Y | |||||
| AMS Specificaton of Titanium Round Bar | AMS-T-9047 (6AL-6V-2SN), AMS-T-9047 (CP-70 GR.4), ASTM B348 (Grade 5), ASTM B348 (Grade 2), ASTM B348 (Grade 4), ASTM B348 (Grade 23), ASTM F67 (Grade 2), ASTM F67 (Grade 4), ASTM F136, ASTM F1472, MIL-T-9047 (6AL-4V), MIL-T-9047 (6AL-4V ELI), MIL-T-9047 (6AL-6V-2SN), MIL-T-9047 (CP-70 GR.4), DMS 1570, DMS 1583, AMS 4971, AMS 4921, AMS 4928, AMS 4930, AMS 4965, AMS 4967, AMS 4978, AMS 4979, AMS 6930, AMS 6931, AMS 6935, AMS 6936, AMS-T-9047 (6AL-4V), AMS-T-9047 (6AL-4V ELI) and More. | |||||
| Titanium Round Bar Uses |
|
|||||
| Titanium Round Bar Order & Packing Information | ||||||
| Min. Order: 10 Pieces (or please enquire for your customized order) Trade Terms: FOB, CIF Payment Terms: L/C, T/T Packing: as per requirement Place of Origin: Mumbai, India Means of Transport: Land, Ocean Delivery Date: one or two week Package: in wooden crate with plastic caps on each end. | ||||||
| Titanium Alloy Round Bar Grades | Commercially Pure Titanium and Titanium Alloys: 6Al-4V ELI | 6Al-4V | 6Al-6V-2SN | 6Al-2SN-4ZR-6MO | 7Al-4Mo Grade 1 | Grade 2 | Grade 4 | Grade 17 | |||||
|
Hardness, Brinell |
120 |
120 |
annealed |
|
Hardness, Knoop |
132 |
132 |
Estimated from Brinell. |
|
Hardness, Rockwell B |
70 |
70 |
annealed |
|
Hardness, Vickers |
122 |
122 |
Estimated from Brinell |
|
Tensile Strength, Ultimate |
240 MPa |
34800 psi |
– |
|
Tensile Strength, Yield |
170 – 310 MPa |
24700 – 45000 psi |
– |
|
Elongation at Break |
24 % |
24 % |
– |
|
Reduction of Area |
35 % |
35 % |
– |
|
Modulus of Elasticity |
105 GPa |
15200 ksi |
In Tension |
|
Compressive Modulus |
110 GPa |
16000 ksi |
– |
|
Poisson’s Ratio |
0.37 |
0.37 |
– |
|
Charpy Impact |
310 J |
229 ft-lb |
V-notch |
|
Shear Modulus |
45 GPa |
6530 ksi |
– |
|
Physical Properties |
Metric |
English |
|
Density |
4.51 g/cc |
0.163 lb/in³ |
| Physical Properties | Metric | English |
|---|---|---|
| Density | 4.51 g/cc | 0.163 lb/in³ |
|
STANDARD |
WERKSTOFF NR. |
UNS |
|
Titanium |
3.7035 / 3.7165 / 3.7235 |
R50400 / R56400 / R52400 |
Type | SIZES (mm) | SIZES (Inches) | ISO Tolerance |
|---|---|---|---|
Cold Drawn and Polish | 3.00 – 75.00 | 1/8 – 3.00 | h8-h9-h10-h11 |
Cold Drawn and Ground | 10.00 – 75.00 | 5/6 – 2.50 | h8-h9-h10-h11 |
Peeled and Polished | 40.00 – 150.00 | 1.50 – 6.00 | h11, h11-DIN 1013 |
Peeled and Ground | 20.00 – 50.00 | 3/4 – 2.00 | h9-h10-h11 |
Titanium Alloy Bars Standard lengths of 2010 mm up to 200 mm. Cut to size on request (tolerance +2/-0 mm).
5.0 | 45.0 |
6.0 | 50.0 |
7.0 | 55.0 |
8.0 | 60.0 |
9.0 | 65.0 |
10.0 | 70.0 |
12.0 | 75.0 |
16.0 | 80.0 |
20.0 | 90.0 |
25.0 | 100.0 |
30.0 | 130.0 |
35.0 | 160.0 |
40.0 | 201.0 |
Titanium Round Bars are commonly used in aerospace, medical, automotive, and chemical industries due to their strength, corrosion resistance, and lightweight properties.
Titanium Round Bars offer exceptional strength-to-weight ratio, excellent corrosion resistance, and high durability, making them ideal for demanding applications in extreme environments.
Yes, we provide bars and rods in standard and customized dimensions and polishes to meet your specific project requirements. For more details mail us on sales@www.madukametal.com
Titanium Round Bars find extensive use in various industries, including aerospace, marine, chemical processing, power generation, and medical equipment manufacturing. In aerospace, they are utilized for aircraft components, fasteners, and engine parts due to their impressive strength and low weight. In the marine sector, their resistance to saltwater corrosion makes them perfect for shipbuilding and offshore structures. Chemical and power plants use these bars for heat exchangers and reactors. In the medical field, Titanium Round Bars are employed for various applications, ensuring safety and reliability.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
