Maduka Metals, a well-respected manufacturer and supplier located in Abuja, Nigeria, is all about crafting top-notch Titanium Grade 5 Forgings. With a strong focus on excellence and innovation, this company is known for delivering forgings that boast impressive strength, resistance to corrosion, and lightweight properties. Titanium Grade 5, or Ti-6Al-4V, is the go-to titanium alloy, celebrated for its remarkable performance in tough environments. Maduka Metals prioritizes precision engineering and rigorous quality control to satisfy the needs of aerospace, marine, chemical processing, and industrial sectors both in Nigeria and around the globe.
When it comes to Titanium Grade 5 Forgings, they’re made up of about 90% titanium, 6% aluminum, and 4% vanadium. This alloy showcases fantastic tensile strength of roughly 895 MPa, yield strength of around 828 MPa, and an elongation rate of 10–14%. With a melting point of 1660°C and excellent fatigue resistance, it’s a real standout. The aluminum boosts strength, while the vanadium enhances ductility and toughness. Plus, Titanium Grade 5 Forgings are known for their exceptional corrosion resistance, particularly in chloride and oxidizing environments, making them perfect for high-performance structural and mechanical components.
| Specifications | ASTM B381, ASME SB381 |
|---|---|
| Standard | DIN, ASTM, BS and all International Standards |
| Flat bar blocks | up to 27″ width and 15,000 lbs |
| Cylinders and sleeves | up to 50″ maximum O.D. and 65″ maximum length |
| Discs and hubs | up to 50″ diameter and 20,000 lbs |
| Rolled, hand forged or mandrel forged rings | up to 84″ maximum O.D. and 40″ maximum length |
| Rounds, shafts and step shafts | up to 144″ maximum length and 20,000 lbs |
| Forging Types | Impression Die Forging, Open Die Forging, Seamless Rolled Forging, Hot Forging, Cold Forging, Open die hammer forging, Impression die drop forging, Closed Die Forging, Press Forging, Upset Forging, Compression Forging, Swaging, Rotary Forging, Roll forging. |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 5 | 3.7165 | R56400 |
Durability of Titanium Grade 5 forgings is ensured by proper heat treatment, controlled forging process, precise die design, alloy composition, and maintaining optimal surface finish, enhancing strength, corrosion resistance, and fatigue resistance.
Titanium Gr 5 forgings are commonly used in aerospace, automotive, medical, marine, and defense industries, providing high strength, corrosion resistance, and lightweight properties for critical components and high-performance applications.

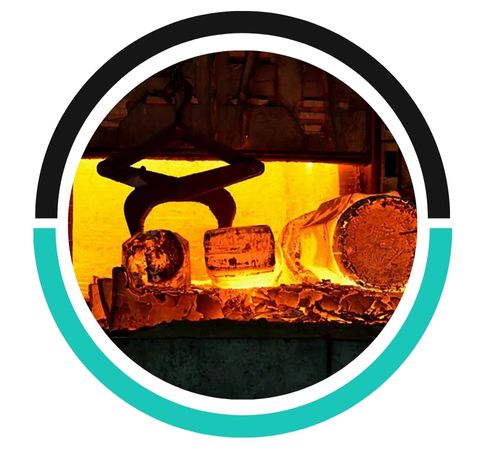

Closed-die forging in Titanium Gr 5 production involves shaping titanium by compressing it between two shaped dies, ensuring precise dimensions, high strength, and improved material properties for demanding applications.
These forgings are in high demand across various industries thanks to their remarkable mechanical strength and corrosion resistance. In aerospace, they’re used for engine components, airframes, and fasteners. The marine sector relies on them for propeller shafts, offshore drilling gear, and parts exposed to seawater. In chemical processing, you’ll find them in valves, pumps, and heat exchangers that need to withstand corrosive chemicals. Additionally, industries like medical, automotive, and defense count on these forgings for implants, racing components, and armor systems, ensuring they deliver durability, performance, and lightweight efficiency in critical applications.
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Maduka Metals is a leading manufacturer, supplier, and exporter of high-quality bars, rods, and forgings, catering to various industries in Abuja, Nigeria
